Reworking Drive Mechanism

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Detach the fabric lining at the front and fold it aside. → Removing Fabric Lining

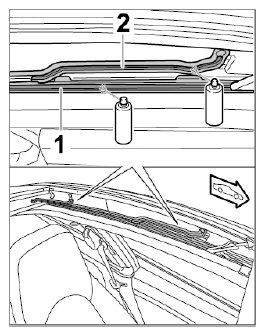

Clean and grease the guide rails and gate guide at the sides.
1. 2.1. Clean the guide rails -1- and gate guide -2- at the left and right.
2. 2.2. Lubricate guide rails -1- and gate guide -2- at the left and right with FIN Super .

  Fig 1: Greasing Sides Of Guide Rails And Gate Guide
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

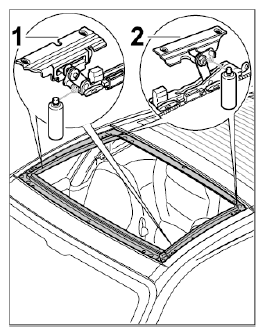

Clean and grease the side holders.
1. 3.1. Clean the side holders -1, 2- at the left and right.
2. 3.2. Clean the side holders -1, 2- at the left and right and lubricate them with FIN Super .
Fig 2: Cleaning Grease Side Holders
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

If the mounting plates of the mounts are not braced properly against each other, the panel for the sliding roof may not function correctly. If they are not braced adequately, rattling noises can occur while driving. If they are braced too tightly, the sliding roof panel can be stiff and difficult to open and close.
Check and adjust the preload.

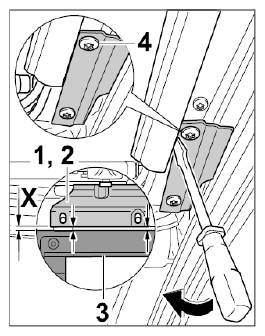

1. 4.1. The mounting plates for the holders at the left -1- and right -2- must be braced against each other. To do this, starting at the front and rear right, insert a wide screwdriver between the mounting plates for the holders and the frame -3- (-arrow- ) and check the preload.
  Position parallel -dimension X- with the roof assembly.

  Fig 3: Aligning Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 4.2. If the preload is not correct, loosen the fastening screw on the mounting plates for the holders and adjust outwards by pressing the screwdriver.
  Then tighten the fastening screws. → Tightening torque: 7.5 Nm (5.5 ftlb.)
Check the end rubber stops in the gate links and replace them if they are worn.

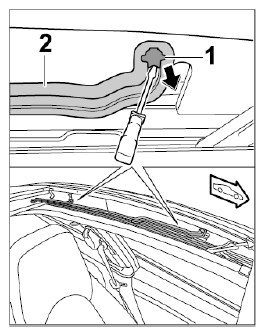

1. 5.1. Pull end rubber stops -1- out of the gate links -2- at the left and right using a screwdriver -arrow- .

  Fig 4: Removing End Rubber Stops
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

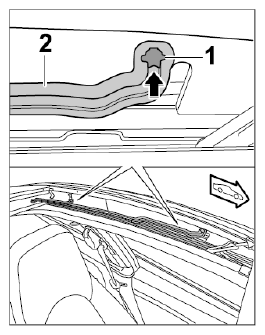

2. 5.2. Press new end rubber stops -1- into the gate links -2- on the left and right -arrow- .

  Fig 5: Installing End Rubber Stops
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure fabric lining at the front. → Installing Fabric Lining
