Removing Rear Window Cover

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

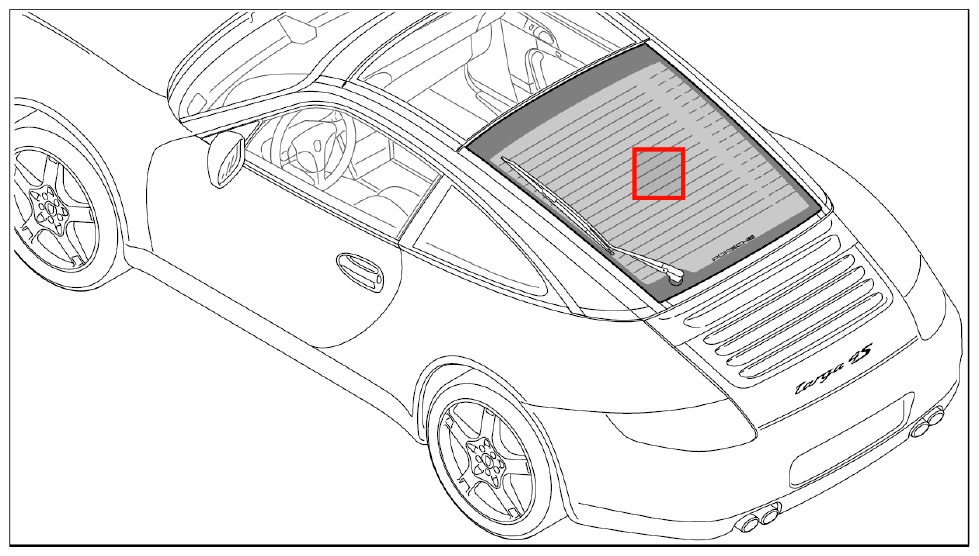

Fig 1: Identifying Position Of Rear Window Cover
G09826688Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screws -2-  on both sides of the rear window cover -1-  .
  2. Loosen fastening nut -3-  by two turns -Arrow-  .
  3. Take rear window cover -1-  off the hinges -4-  .

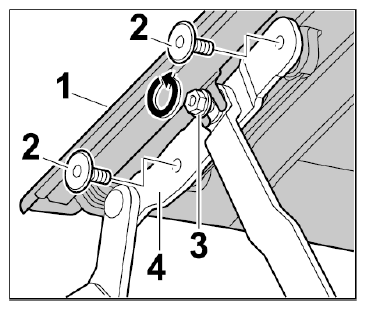

    4. Fig 2: Removing Rear Window Cover
    G09826689Courtesy of PORSCHE CARS NORTH AMERICA, INC.
