Installing Rear Window Cover

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install rear window cover.
1. 1.1. Position rear window cover -1- on the hinges -4- and place a shim -5- between the rear window cover -1- and hinge -4- .
2. 1.2. Screw on fastening screws -2- hand-tight.
3. 1.3. Move the rear window cover -1- at the hinges -4- to adjust the contours with respect to the sliding roof cover and rear center panel. → Gap dimension A: 15 mm+/-2 mm → Gap dimension A: 6 mm+/-1 mm → Gap dimension B: 2 mm+/-1 mm → 5000IN DIAGRAM - BODY GAP DIMENSIONS
4. 1.4. Adjust the parallel positioning -Arrows A- of the upper edge of the hinge -4- with respect to the fastening screws -2- . Tighten fastening screws -2- and fastening nuts -3- . → Tightening torque: 10 Nm (7.5 ftlb.) → Tightening torque: 4 Nm (3.0 ftlb.)

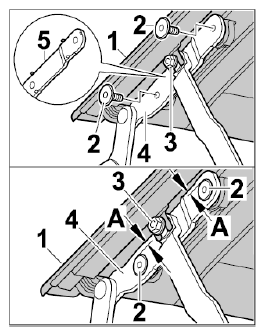

  Fig 1: Installing Rear Window Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjust rear window cover.
1. 2.1. Adjust the height of the rear window cover with respect to the rear center panel by screwing the rubber adjustment stops -1- at the left and right in or out as required. → Gap dimension: 6 mm+/-1 mm → 5000IN DIAGRAM - BODY GAP DIMENSIONS

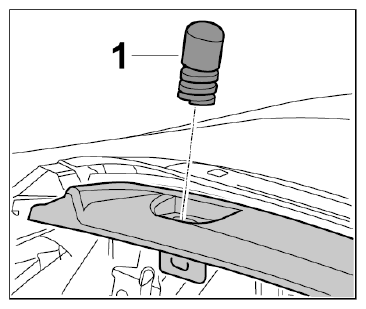

  Fig 2: Screwing In Rubber Adjustment Stop
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
