Removing Closing Aid

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

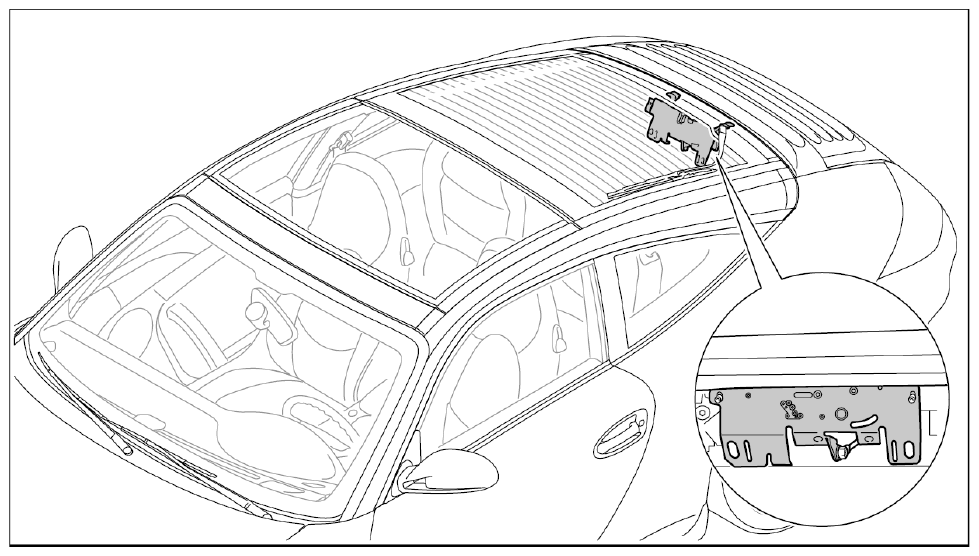

Fig 1: Identifying Closing Aid Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

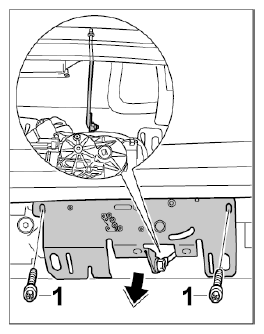

Unscrew the fastening screws -1- and fold over the closing aid, which is engaged in the support -inset- on the body.

Fig 2: Folding Closing Aid Over
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw off hexagon nut -2- , then remove the strut on the closing aid.

Fig 3: Screwing Off Support Strut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

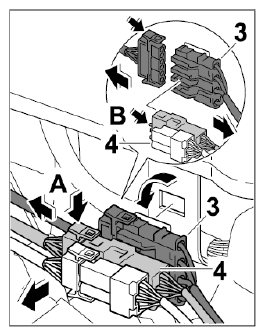

Disconnect the microswitch plug connection.
1. 3.1. Turn connector unit and remove it from the body.
2. 3.2. Release connector -3- and -4- (-arrow A- ) and disconnect plug connection -arrow- .
3. 3.3. First actuate latch -arrow B- and pull connector -4- from connector -3- .

  Fig 4: Undoing Plug Connection For Microswitch
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
