Removing Roof Joint Cover Strip

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

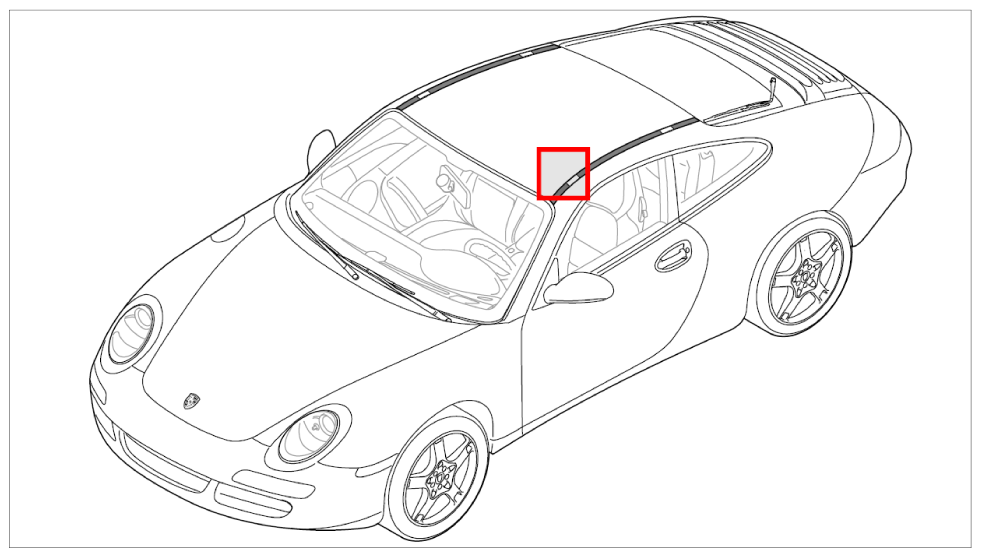

Fig 1: Position Of Roof Joint Cover Strip (C-Pillar Cover)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

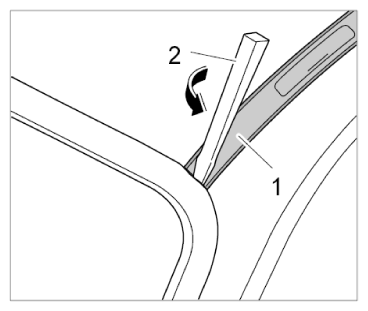

Lift roof joint cover strip -1- using a plastic spatula -2 - and unclip all the way along.

Fig 2: Removing Roof Joint Cover Strip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

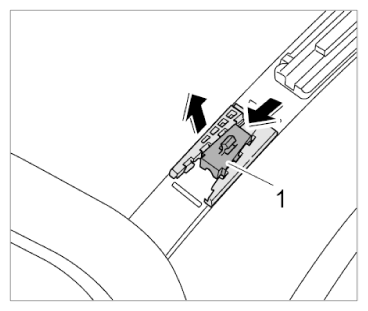

Move wedge piece of spreader -1- with a plastic wedge. Remove spreader.

Fig 3: Detaching Spreader
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
