Installing Control Unit For Active Engine Mounting (PADM)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position control unit on the holder and secure with the three fastening nuts -1-  . → Tightening torque: 10 Nm (7.5 ft. lb.)

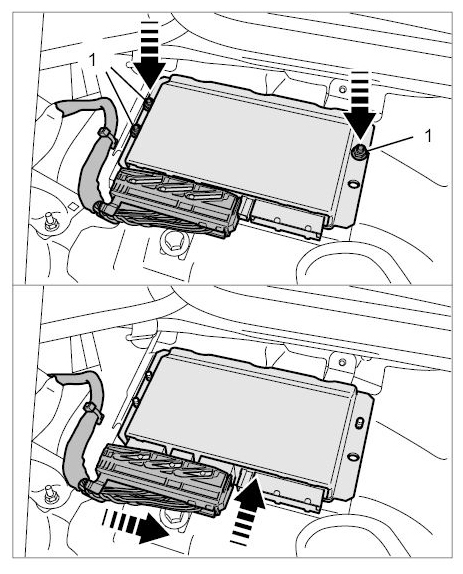

    Fig 1: Installing Control Unit
    G09816128Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Connect electric plug connection and lock it -arrow-  until the connector engages securely.
