Removing Engine Mounting

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing

→ Secure components to prevent them from falling down.

Remove air cleaner housing.
→ 242519 REMOVING AND INSTALLING AIR CLEANER HOUSING .
Support engine in installation position using floor jack H 2 SL WE 1032 and transmission jack plate of transmission jack VAG 1383 A WE 1082 at the oil pan.
Loosen collar nut M12 (internal Torx screw, screw insert T55) -1- at the engine carrier and unscrew it.

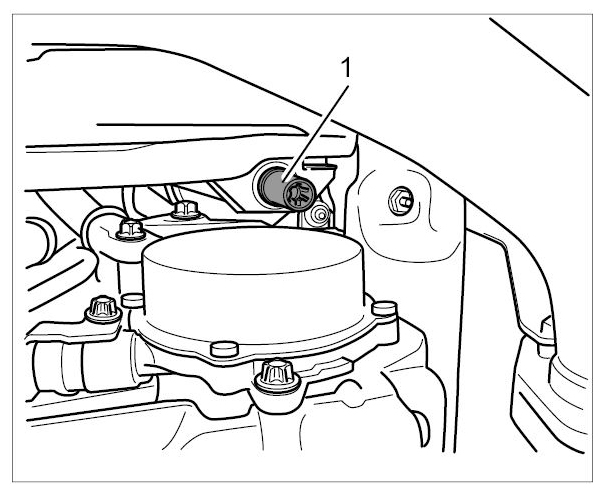

Fig 1: Identifying Engine Carrier At Engine Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew two hexagon-head bolts (M x 60 at engine mounting (item 1 or 2).

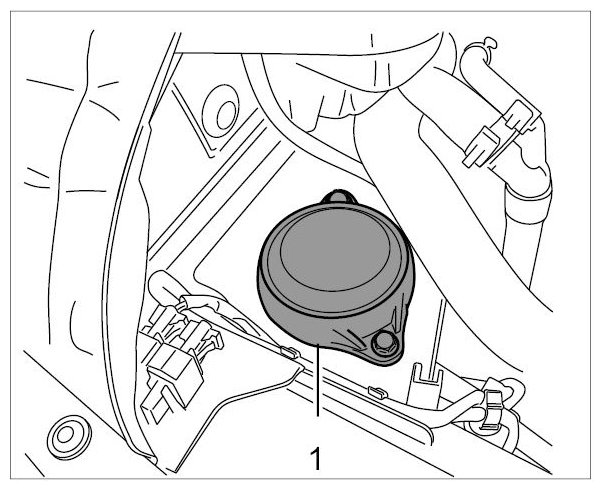

Fig 2: Identifying Left Engine Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

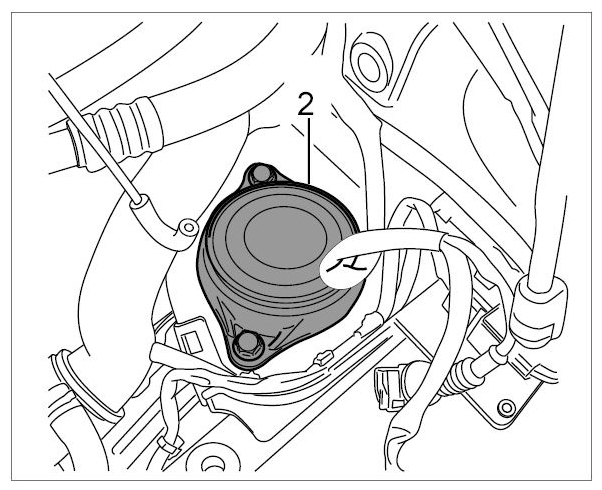

Fig 3: Identifying Right Engine Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Guide engine mounting -1- upwards out of the engine carrier.

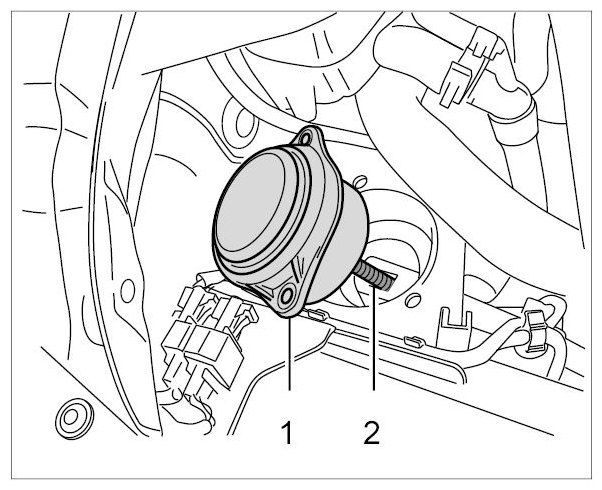

Fig 4: Identifying Vehicle Engine Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check mounting carefully for damage (dents, cracks at metal insert, threaded bolt) or leaks (emerging hydraulic fluid).
1. 6.1. Replace component if in doubt.
