Installing Engine Mounting

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing

→ Secure components to prevent them from falling down.

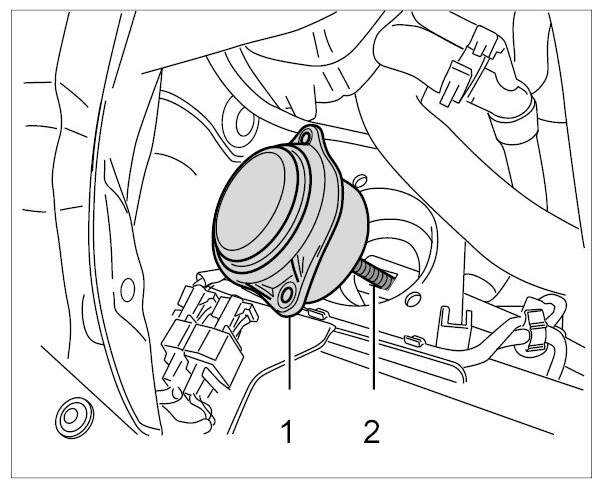

Insert engine mounting -1- at engine carrier and at the same time guide the threaded bolt -2- through the bearing eyelet on the engine carrier.

Fig 1: Identifying Vehicle Engine Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert two hexagon-head bolts M8 x 60 and tighten them. → Tightening torque: 23 Nm (17 ft. lb.) .
Position collar nut M12 (internal Torx screw, screw insert T55) at threaded bolt of engine carrier and tighten it. → Tightening torque: 85 Nm (63 ft. lb.)
Lower jack together with transmission jack plate and push out of work area.
Fit air cleaner housing.
→ 242519 REMOVING AND INSTALLING AIR CLEANER HOUSING .
