WM 1001Z1 Disassembling Engine - Turbo (Turbo Coupe, Turbo S Coupe, Turbo CABRIO & Turbo S CABRIO): Information

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Loosen or tighten all threaded connections according to instructions in the document → 1X00IN TIGHTENING TORQUES FOR ENGINE MA170 AND MA170 S .

Overview of special tools

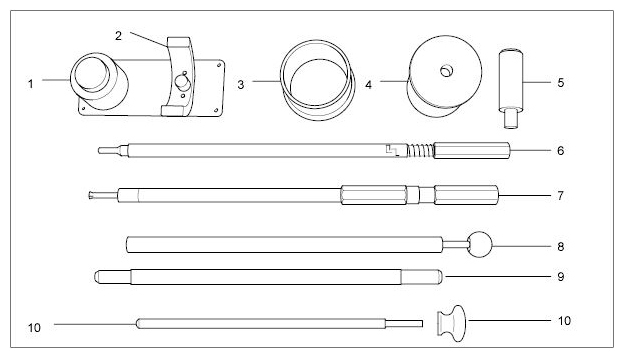

Fig 1: Identifying Engine Disassembly Special Tools

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Retaining device 9778 with piston receiving element, diameter: 97 mm
Piston receiving element 9778/1 , diameter: 102 mm
or funnel 9784/2 for installing pistons, diameter: 102 mm
Assembly aid for pistons 9787/1 , diameter: 102 mm
Handle of assembly aid 9598
Disassembly tool 9764 for piston-pin circlips
Disassembly tool 9777 and assembly tool for piston pins, turbo engine (diameter: 23 mm)
Assembly tool 9776/1 for piston-pin circlips, turbo engine
Centering mandrel 9782 for connecting rods and pistons.
Assembly Aid 9783 for pressing out pistons (cylinders 1-3) and connecting rods with pistons (cylinders 4-6)

ohne Bild - Rubber sleeves, Assembly Aid 9795 for protecting cylinder linings (assembly on connecting rods for cylinders 1-3)
