Removing Adjustment Fitting (Seat Belt Height Adjuster)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

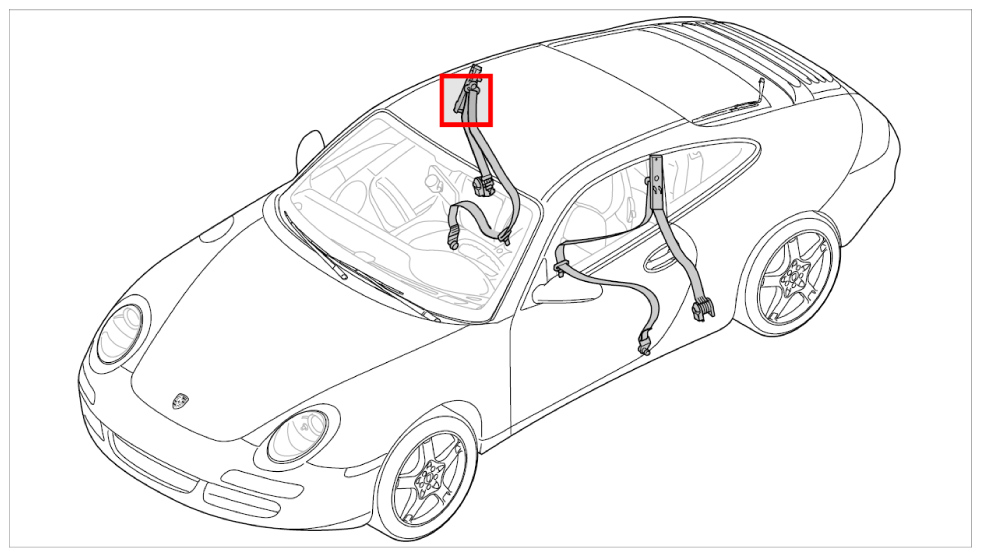

Fig 1: Identifying Seat Belt Height Installation Position
G09827378Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screw -1-  .

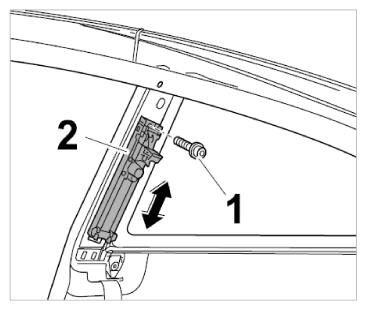

    Fig 2: Adjusting Fastening Screw
    G09827379Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Guide the adjustment fitting -2-  upwards out of the B-pillar in -direction of arrow-  .
