Installing Rear Three-Point Belt

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

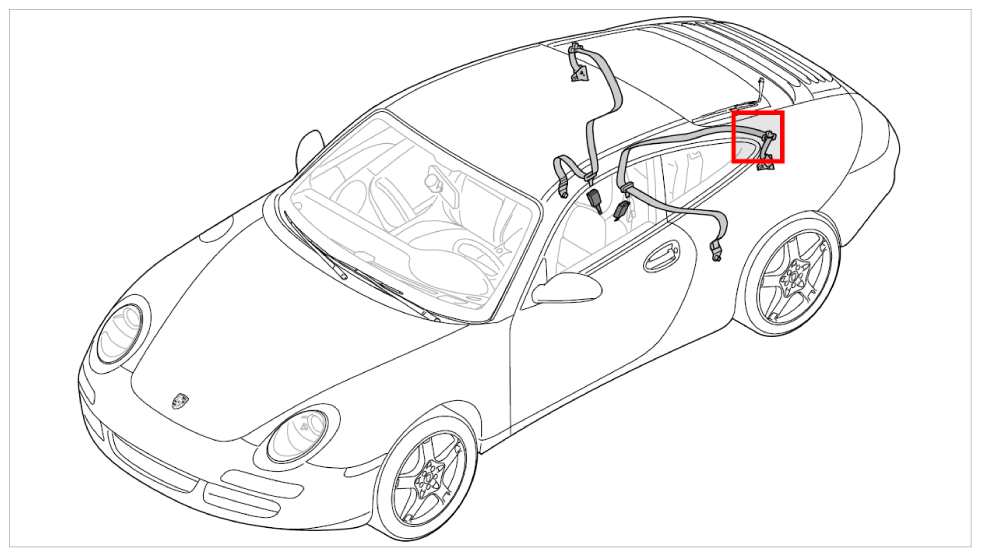

Fig 1: Identifying Rear Three-Point Belt Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Ensure that belt strap can run properly!

Position automatic belt device -4- , making sure that the locking tab of the automatic belt device is engaged correctly in the sheetmetal bracket.

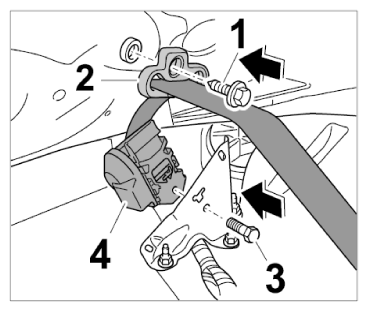

Fig 2: Installing Rear Three-Point Belt
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure automatic belt device -4- with the fastening screw -3- . Tightening torque → Tightening torque: 37 ftlb.+/- 3.5 ftlb.
Information

Ensure that belt strap can run properly!
Position deflector -2- and screw down with the fastening screw -1- . Tightening torque → Tightening torque: 37 ftlb.+/-3.5 ftlb.
