Removing Trim Panel For Rear Wall

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew fastening screws -1-  .

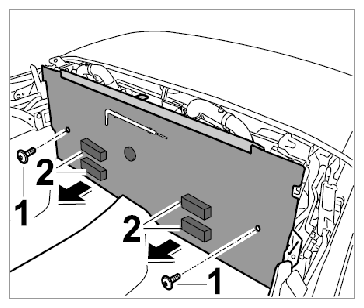

    Fig 1: Detaching Rear-Wall Trim Panel
    G09829156Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Detach Velcro fasteners -2-  in the marked area -arrows-  .
  3. Carefully fold the rear-wall trim panel -1-  at the left side inwards -arrow A-  and disengage the tab -2-  (-arrow B-  ).

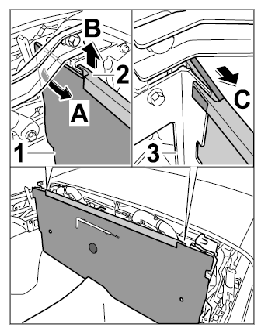

    Fig 2: Removing Trim Panel For Rear Wall
    G09829157Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Guide the rear-wall trim panel -1-  at the right out of the frame for the roll-over protection system -3-  (-arrow C-  ).
