Installing Trim Panel For Rear Wall

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Secure the trim panel -1-  at the right into the frame for the roll-over protection system -3-  (-arrow A-  ).

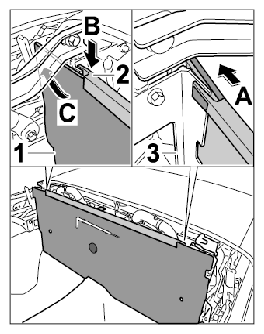

    Fig 1: Installing Trim Panel For Rear Wall
    G09829158Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Carefully secure the rear-wall trim panel -1-  in the tab on the left side -2-  (-arrow B-  ) and align it -arrow C-  .
  3. Align the rear-wall trim panel and secure with the fastening screws -1-  . → Tightening torque: 2.5 Nm (2 ft. lb.)

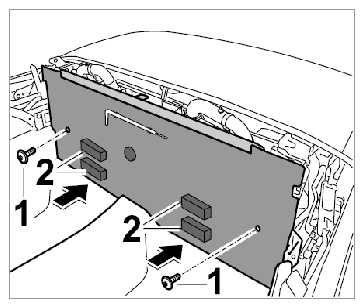

    Fig 2: Securing Trim Panel For Rear Wall
    G09829159Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Press on Velcro fasteners -2-  in the marked area -arrows-  .
