Installing Hydraulic Valve For Camshaft Timing

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

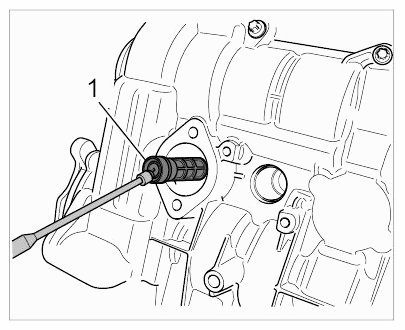

Using a bar magnet, fit a cleaned or new oil strainer into the cylinder bore -1- . Pay attention to the installation position.

Fig 1: Installing Oil Strainer Of Hydraulic Valve NVS
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Replace O-ring on hydraulic valve and retainer plate with seal.
- Observe installation position of the hydraulic valve .
Replace O-ring on the hydraulic valve and coat new O-ring with engine oil. Insert hydraulic valve into the cylinder head. Pay attention to installation position while doing this. The groove on the valve -arrow- points to the dowel pin in the cylinder head.

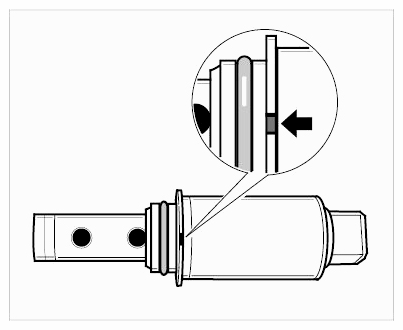

Fig 2: Locating Groove On Valve For Camshaft Timing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

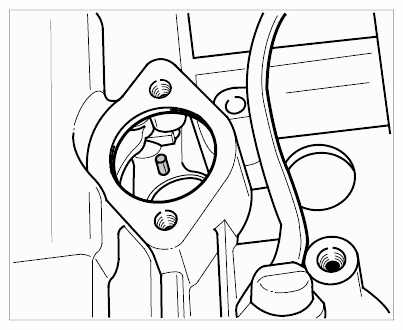

Position of dowel pin in cylinder head

Fig 3: Identifying Dowel Pin For Valve Of Camshaft Timing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

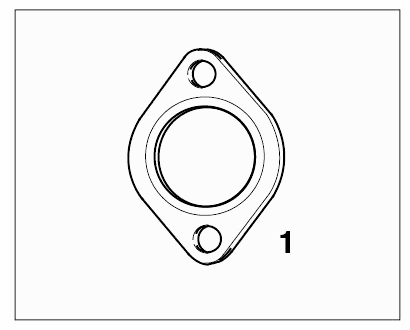

Lightly coat seal of retainer plate with engine oil and slide it over the hydraulic valve.

Fig 4: Identifying Retainer Plate
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

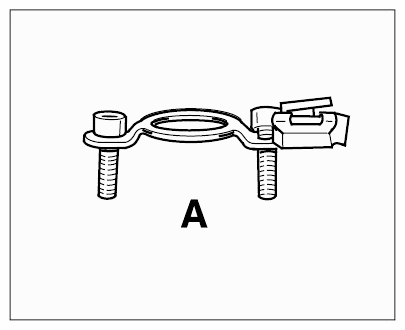

Position two M6 x 20 inner Torx screws complete with holder -A- on the valve and tighten the screws. Observe installation position of the cable terminal (to intake distributor). → Tightening torque: 7.5 ftlb.

Fig 5: Identifying Retainer Plate
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push cable plug onto the hydraulic valve. Make sure that the plug engages audibly.
