Installing Upper Part Of Heat Shield

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

Install upper part of heat shield on cylinder bank 1-3.

Guide the heat shield in from the rear and position it.

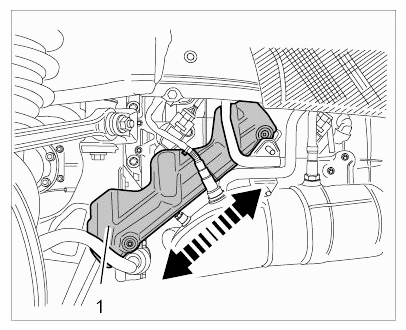

Fig 1: Installing Heat Shield
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit and tighten screws -2- .
→ Tightening torque: 13 Nm (9.5 ftlb.)

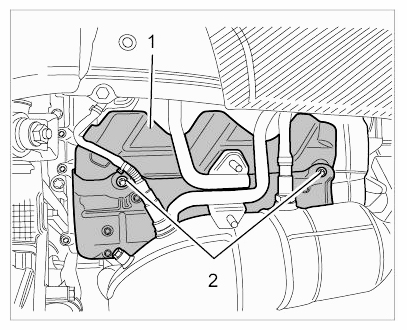

Fig 2: Identifying Cylinder Bank Heat Shield
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install upper part of heat shield on cylinder bank 4-6.
Install heat shield on cylinder bank 4-6 in the same way as the heat shield for cylinder bank 1-3.
