Installing Oil Separator: Notes

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

Information

Replace O-rings.
Grease O-rings with a light coating of Kluber Syntheso Glep (Part No.: 000.043.204.68).

Remove all stoppers from the connection points.
1. 1.1. Grease new O-rings.
Guide in oil separator -1- from inside the passenger compartment and fit it into the oil bracket.

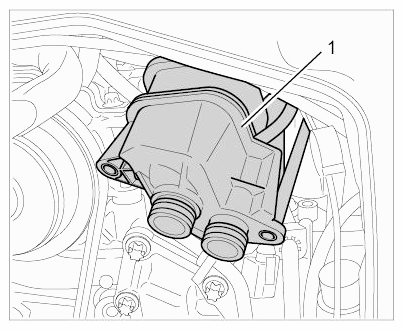

Fig 1: Guiding In Oil Separator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit and tighten two external Torx screws (E10, M6 x 20) -3- .

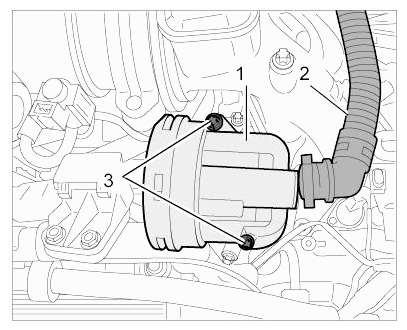

Fig 2: Identifying Oil Separator Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. → Tightening torque: 13 Nm (9.5 ftlb.)
2. 3.2. Connect positive crankcase ventilation line -2- to the oil separator (locking sound).
3. 3.3. Pull to check that the line is secure.
Connect cable plug for coolant temperature sensor.
Press flange of positive crankcase ventilation line into the bracket with new O-rings.
1. 5.1. Fit and tighten external Torx screw (E10, M6 x 20) -1- .
  → Tightening torque: 13 Nm (9.5 ftlb.)
2. 5.2. Connect positive crankcase ventilation line to the cylinder head -arrow- .

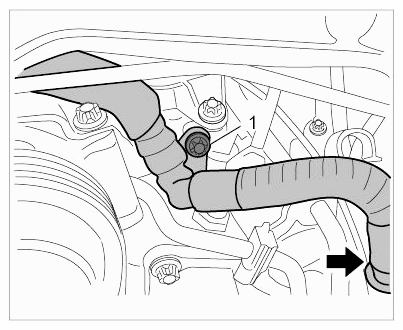

  Fig 3: Connecting Positive Crankcase Ventilation Line To Cylinder Head
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
