Removing Drive Plate For Converter

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

Information

The toothed segment 9538/1 must be bored to ø 15 mm to guarantee a perfect fit and to avoid damaging the thread in the crankcase.

To counter, fit toothed segment 9538/1 to the crankcase using an M12 x 50 hexagon-head bolt (fine thread).

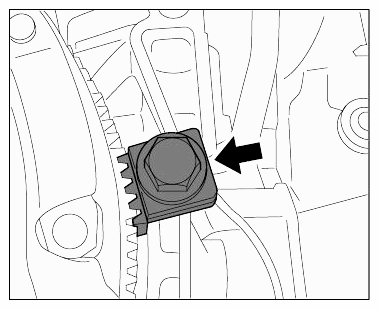

Fig 1: Locating Toothed Segment 9538/1
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen and unscrew eight M10 x 25 fastening screws on the drive plate. Remove drive plate.

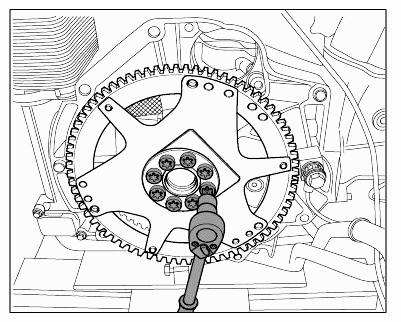

Fig 2: Detaching Drive Plate Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen fastening screw for toothed segment.
