Installing Flywheel - PDK Transmission

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Caustic fluids

Danger of chemical burns

→ Avoid contact with caustic fluid.

→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

Remove protective wax on new parts with acetone or solvent naphtha.
Information

Before re-installing the flywheel, clean the friction surface of the flywheel using a clean, lint-free cloth soaked in acetone or solvent naphtha).
Position the flywheel on the crankshaft dowel pin and press it onto the crankshaft flange.
1. 2.1. Fit ten new (M10 x 29 internal serration) fastening screws and tighten evenly in diagonally opposite sequence.
Toothed segment 9538/1 -1- must be inserted in order to counter at the starter ring gear.
1. 3.1. Place toothed segment on the sloping cast edge of the cylinder housing.

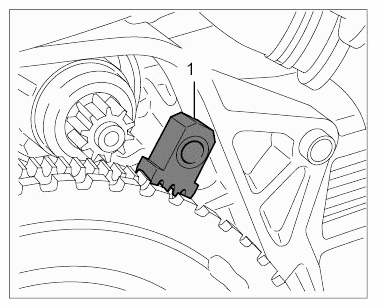

  Fig 1: Identifying Toothed Segment Position For Tightening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten fastening screws evenly in diagonally opposite sequence according to the tightening specifications.
1. 4.1. Check that the toothed segment is fitted correctly.
2. 4.2. → Initial tightening: 25 Nm (19 ftlb.)
3. 4.3. → Final tightening - torque angle: 120°

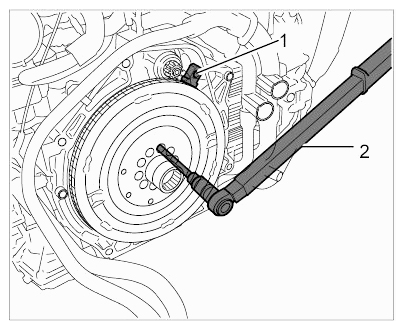

  1. Toothed segment 9538/1
  2. Torque wrench/torque angle wrench with socket-wrench insert for internal serration screws

    Fig 2: Fitting Toothed Segment For Countering Purposes
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
