Installing Vacuum Pump

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

Clean contact surfaces.
Clean contact surfaces on the vacuum pump and left cylinder head.
Install vacuum pump.
1. 2.1. Replace sealing rings.
  Grease sealing rings -2, 3- with "Kluber Syntheso Glep

  1" (Porsche Part No. 000.043.204.68) before fitting them.

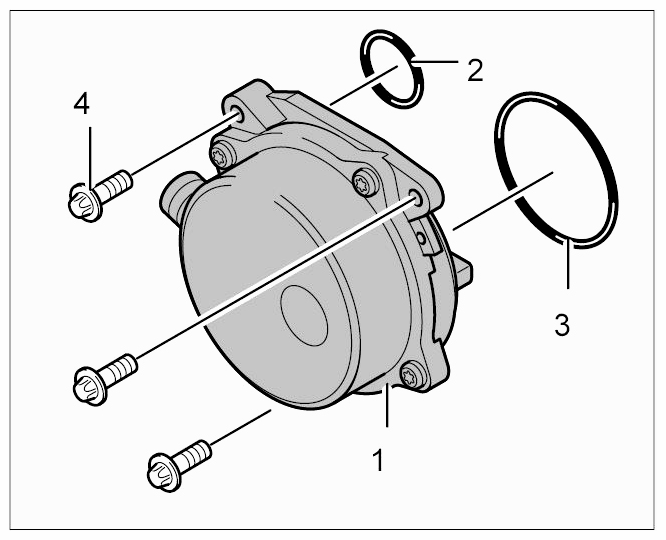

  Fig 1: Identifying Vacuum Pump With Sealing Rings
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Align vacuum pump driver -1- .
3. 2.3. Fit vacuum pump and screw in and tighten external Torx screws (M6 x 20) -4- .
  → Tightening torque: 9 Nm (6.5 ftlb.)
Install vacuum pipe.
1. 3.1. Check sealing rings -1- on vacuum line -2- and replace if necessary.

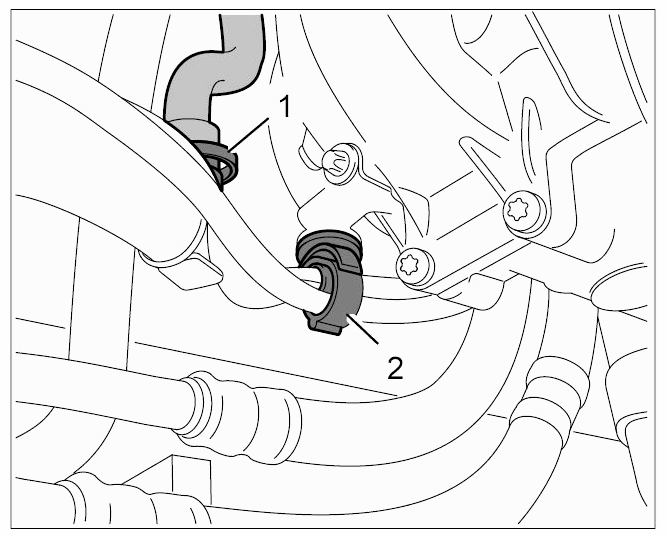

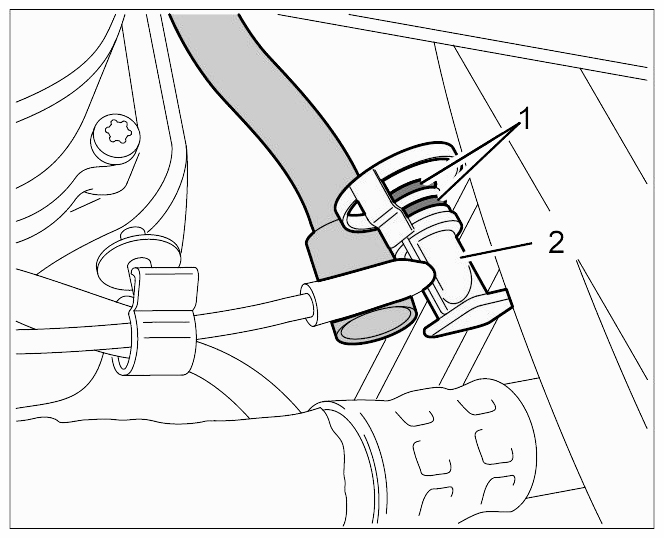

  Fig 2: Identifying Sealing Rings On Vacuum Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Fit vacuum pipe -2- and screw in and tighten M6 x 12 screws -1-
  → Tightening torque: 10 Nm (7.5 ftlb.)

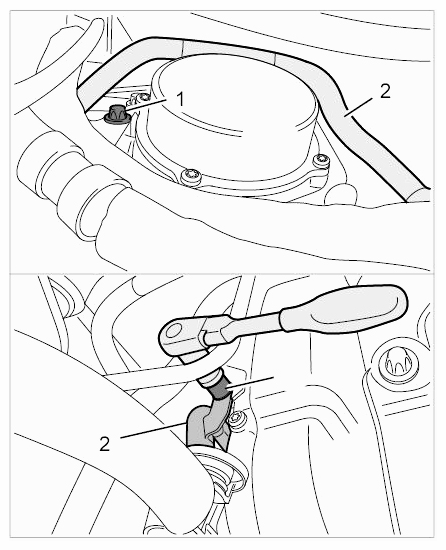

Fig 3: Tightening Screw Vacuum Pipe
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect vacuum line and electric line.
1. 4.1. Insert vacuum line and electric line into clip holder -2- .
2. 4.2. Connect plug-in coupling -1- at the vacuum line.
  Make sure that the plug-in coupling -1- locks with an audible click.
