Removing Oil Separator

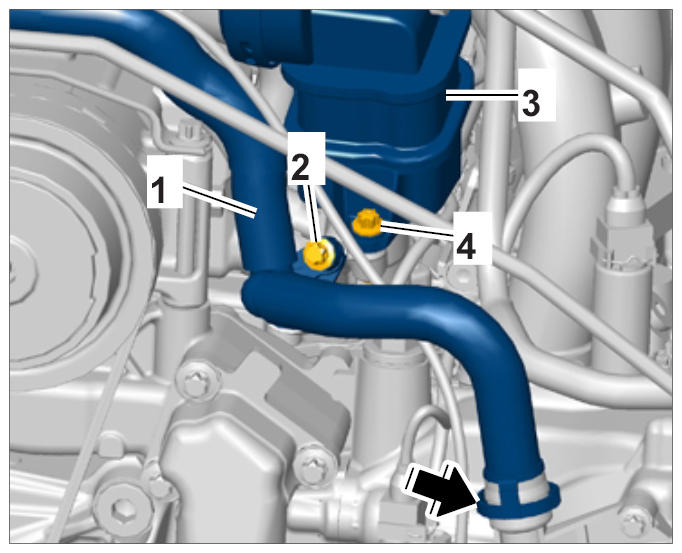

- Unscrew and remove fastening screw -4-
on the oil separator -3-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

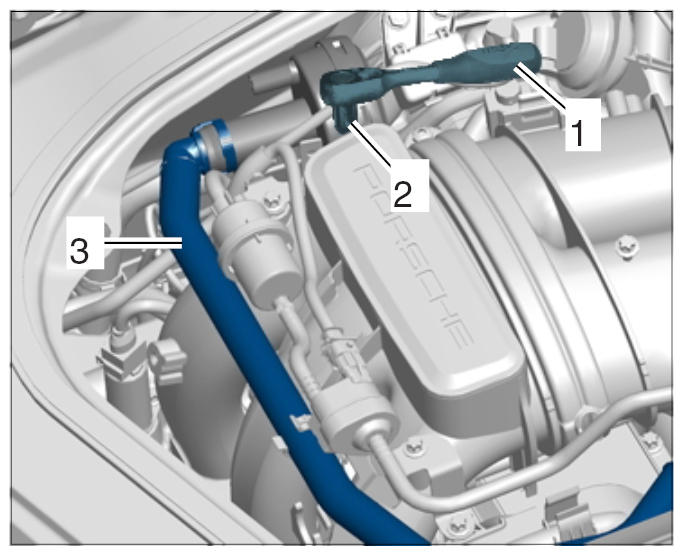

- Release and pull off positive crankcase ventilation line -3-
at the oil separator.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

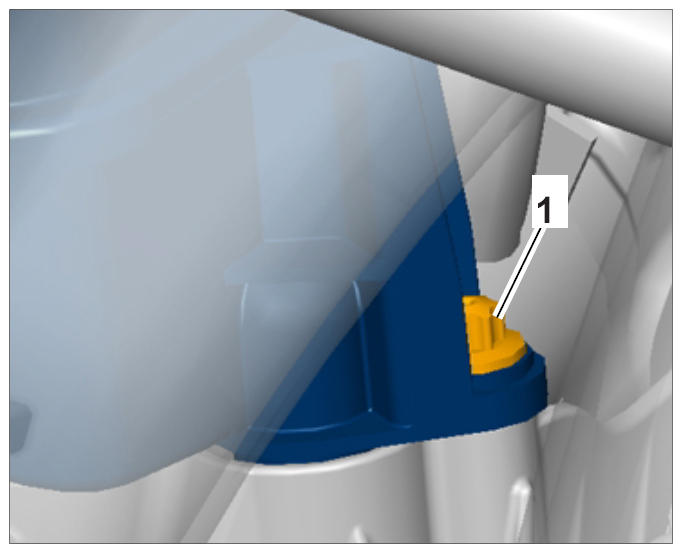

- Unscrew and remove fastening screw -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Carefully press positive crankcase ventilation line aside and out of the work area.

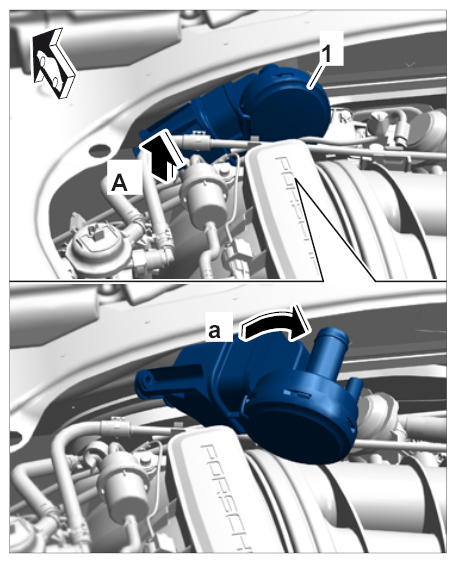

- Pull oil separator -1-
up off the oil bracket -arrow "A"-
and remove it -arrow "a"-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Clean connection points and seal with stoppers.
