Installing Oil Separator

Remove all stoppers from the connection points.
Information
- Replace O-rings .
- Grease O-rings with a light coating of Kluber Syntheso Glep (Part No.: 000.043.204.68) .
Replace O-rings -2- on the oil separator -1- .
1. 2.1. Grease new O-rings -2- .

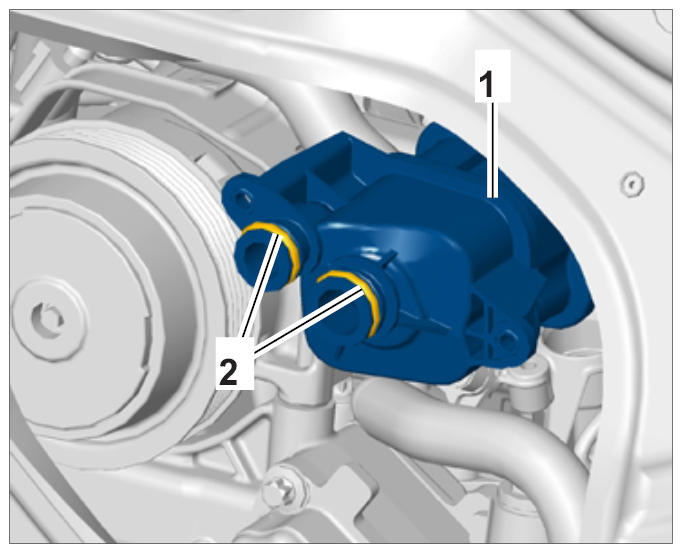

Fig 1: Identifying Oil Separator O-Rings
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert oil separator into the engine compartment from above and fit it on the oil bracket.
Secure the oil separator.
1. 4.1. Fit fastening screw -4- on the oil separator.

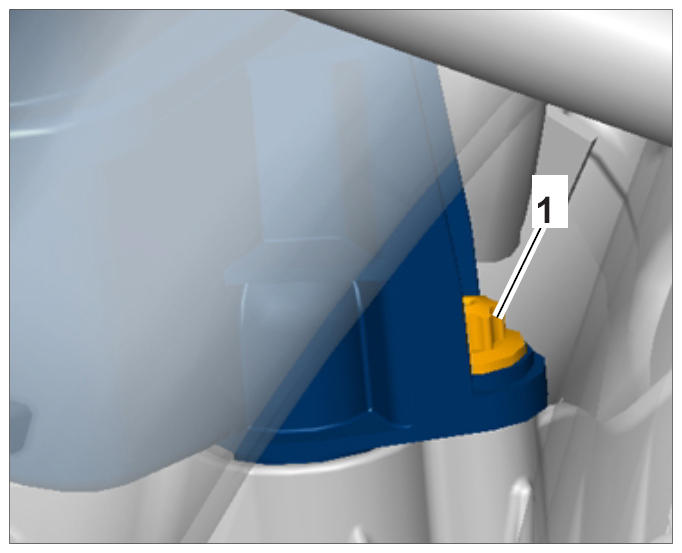

  Fig 2: Locating Front Oil Separator With Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 4.2. Fit fastening screw -1- on the oil separator.

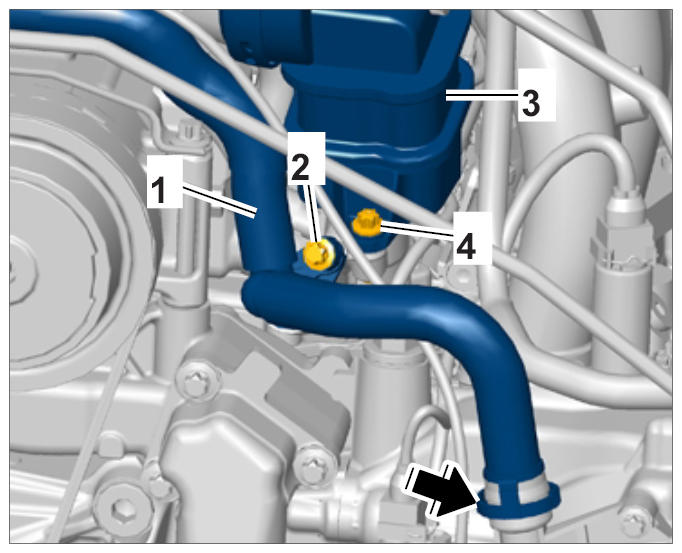

  Fig 3: Identifying Intake-Air Distributor Oil Separator Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 4.3. Tighten fastening screws -4- and -1- (depending on type) to Tightening Torque 10 Nm (7.5 ft. lbs.) or Tightening Torque 13 Nm (9.5 ft. lbs.) .
Connect crankcase vent line -3- to the oil separator until the lock engages securely.

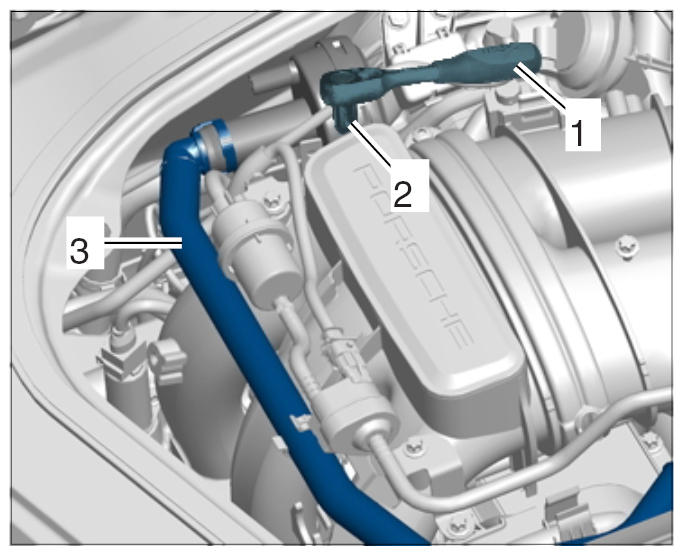

Fig 4: Connecting Crankcase Vent Line To Oil Separator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
