Removing Positive Crankcase Ventilation Line

  1. Disconnect crankcase vent line -1-  .
    1. 1.1. Unscrew fastening screw -2-  and remove crankcase vent line from the oil cooler bracket.
    2. 1.2. Release positive crankcase ventilation line at the cylinder head -arrow-  and pull it off.

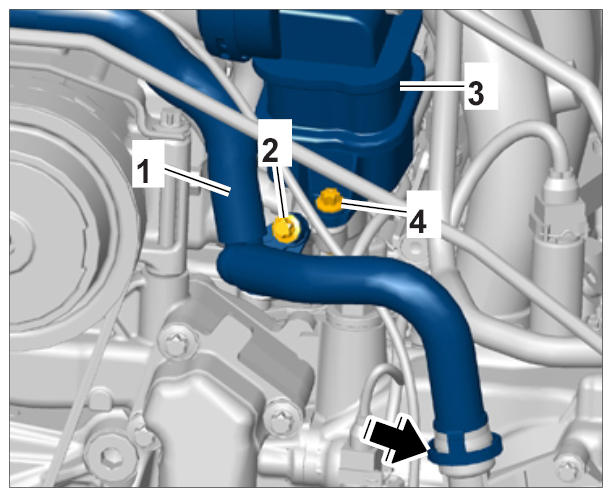

    Fig 1: Identifying Crankcase Ventilation Line And Screw
    G10026206Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release positive crankcase ventilation line -1-  at the oil filler pipe -arrows  and pull it off.

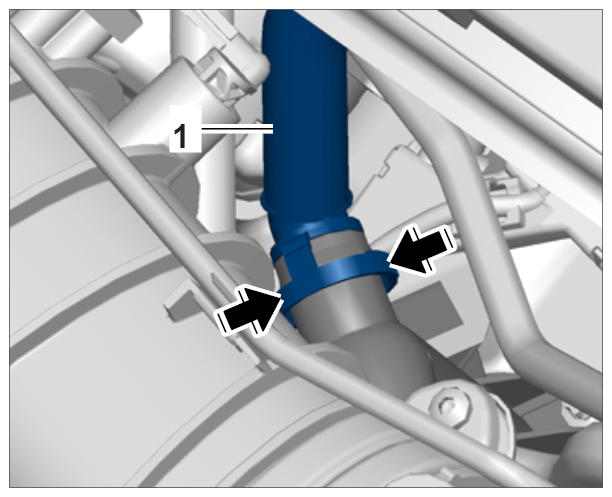

    Fig 2: Locating Positive Crankcase Ventilation Line Connection On Oil Filler Pipe
    G10026207Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Release positive crankcase ventilation line -1-  at cylinder head 1-3 -2-  and pull it off.

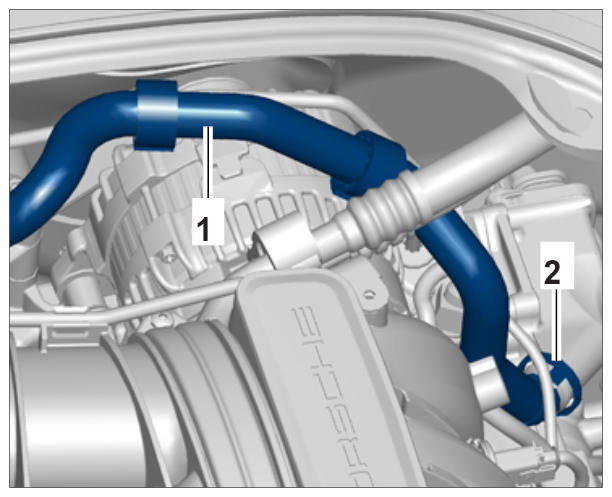

    Fig 3: Identifying Crankcase Ventilation Line And Cylinder Head
    G10026208Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Expose positive crankcase ventilation line and remove it from the engine compartment.
