Lowering The Engine

→ Do not place any solid objects under the raised vehicle.

→ Ensure that the lifting platform is prevented from lowering.

→ Remove solid objects before lowering the vehicle.

→ Raise the vehicle only at the jacking points provided.

→ The outer jacking points should be used primarily.

→ Secure components to prevent them from falling down.

information

• When lowering, the engine must not rest on the rear axle cross member  .

1. Remove cover for rear underbody.

   → 519419 REMOVING AND INSTALLING COVER FOR REAR UNDERBODY .

   For Working Under The Vehicle:

2. Support the engine using the Master Gear unit elevating platform WE 1206  and the special tools specified below.
   1. Master Gear Unit Elevating Platform WE 1206
   2. Support 9769/1  for Porsche Doppelkupplung (PDK)
   3. Support 9769/2  for manual transmission
   4. Retainer Plate 9769  for engine

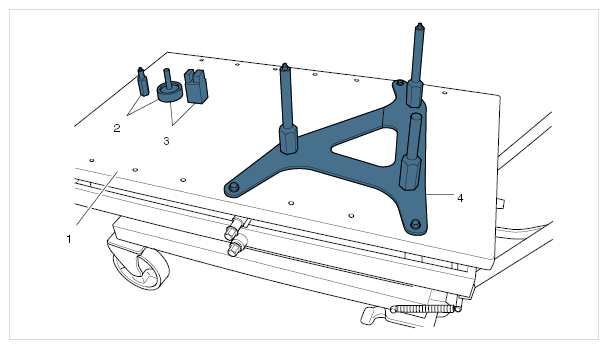

   Fig 1: Identifying Master Gear Unit Elevating Platform With Mounting Point For Engine And Transmission Support

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 2.1. Mounting Points On Engine:

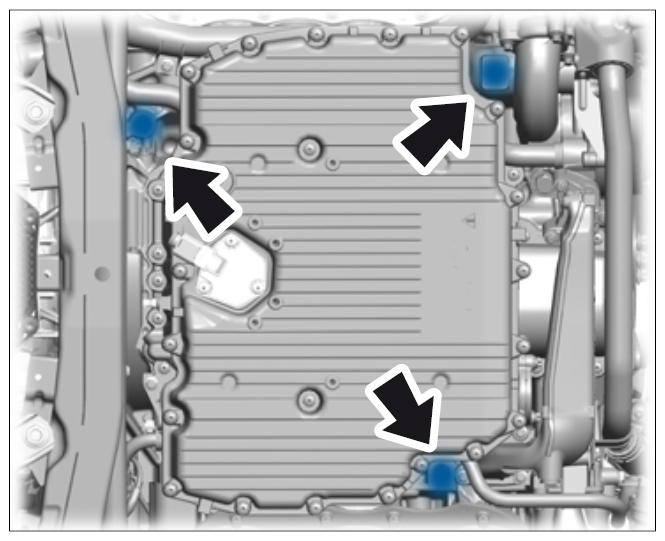

      Fig 2: Locating Engine Mounting Points

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • It may only be supported over a large area at the oil pan  .
   • Localized loading is not permitted  .
3. Support the engine at the oil pan using Transmission Jack VAG 1383 A WE 1082  .
4. Loosen or unscrew fastening nuts -2-  on the engine carrier.

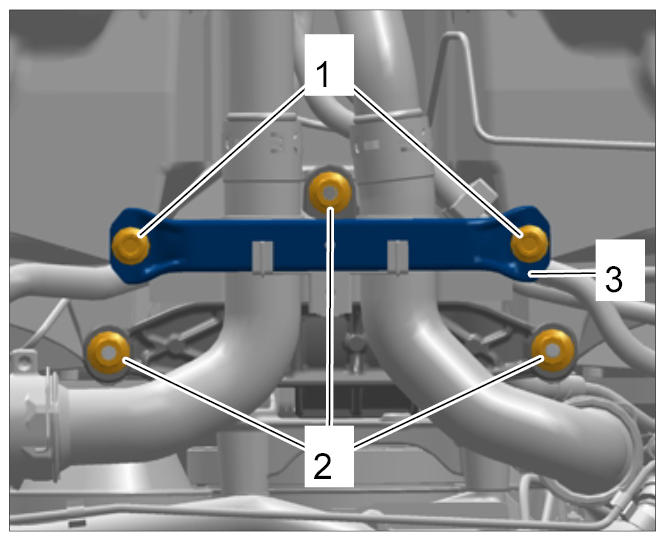

   Fig 3: Identifying Engine Mount Strut And Fastening Nuts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • The engine can be lowered by max. 40 millimeters without loosening the transmission mounts  .
   • The exhaust manifolds must not be touching the diagonal braces  .
5. Carefully lower the engine.
