Lifting And Securing The Engine

→ Secure components to prevent them from falling down.

Information

• It may only be supported over a large area at the oil pan  .
• Localized loading is not permitted  .

1. Raise the engine to installation position using the required lifting tool and secure it.
   1. 1.1. Tighten collar nuts on the engine carrier.

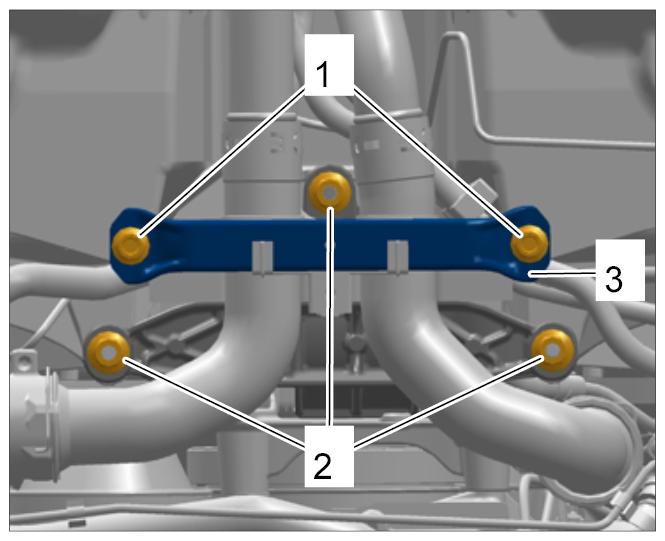

      Fig 1: Identifying Engine Mount Strut And Collar Nuts

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove lifting tool.
