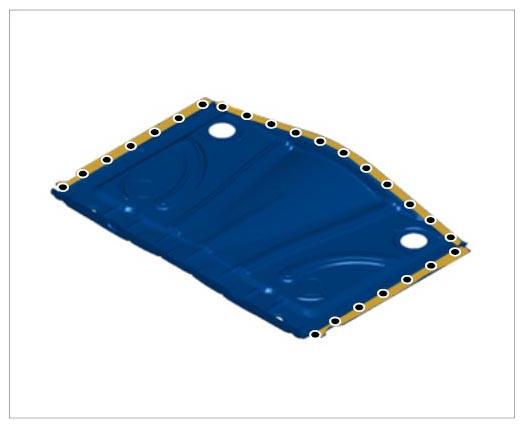

Preparing Rear Trunk Floor Panel For Installation
- Screw hole finders VAS 6631/2 into the thread of the connection areas for the boot floor plate at the left and right.
- Fit and secure rear trunk floor panel.
- 2.1. Mark the position of the holes according to the new part by tapping the hole finders with a hammer.
- 2.1.1. Remove boot floor plate.
- 2.1. Mark the position of the holes according to the new part by tapping the hole finders with a hammer.
- Drill through the punched holes using a drill bit with a diameter of → Diameter: 6.6 mm .
- De-burr the holes.
- Prepare connection areas for bonding. → Preparing Bonding Surfaces
.
