Installing Roof

Apply structural adhesive and support adhesive (window adhesive).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

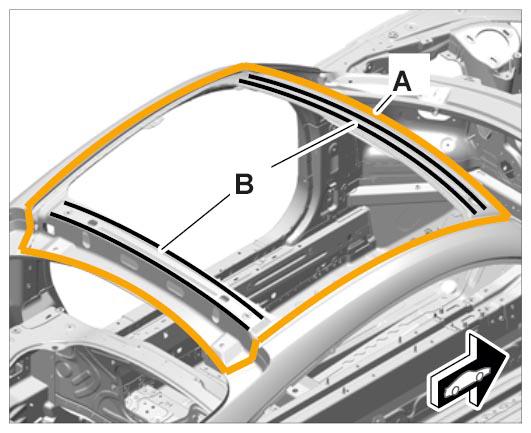

1. 1.1. Evenly apply structural adhesive to the marked areas -A- .
  Working with body structural adhesive → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE .

  Structural adhesive
2. 1.2. Apply support adhesive (window adhesive) to the marked areas -B- . Apply additional adhesive beads as shown.
  Support adhesive .

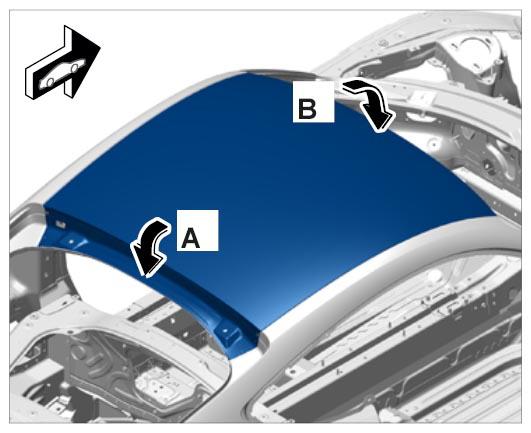

Place roof on rear roof frame with the help of two people → A- and swivel it in towards the front -→ B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Have this work carried out by an assistant while at the same time starting with the welding work .

Clean surface of roof in the side panel area.

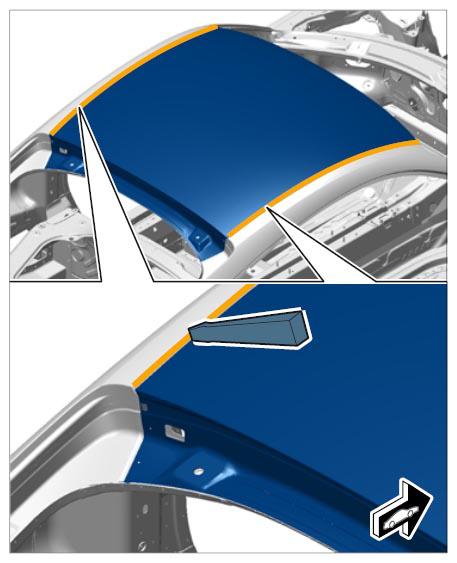

3.1. Remove most of the excess adhesive material with a plastic spatula or cloth.

G10028957

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

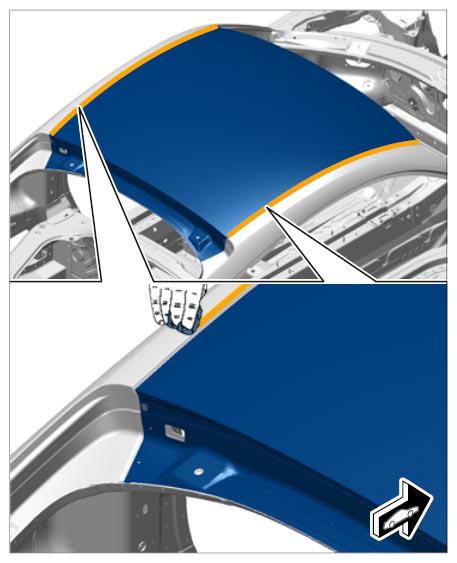

3.2. Finish cleaning visible surfaces with a cloth soaked in cleaning solution.

G10028958

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

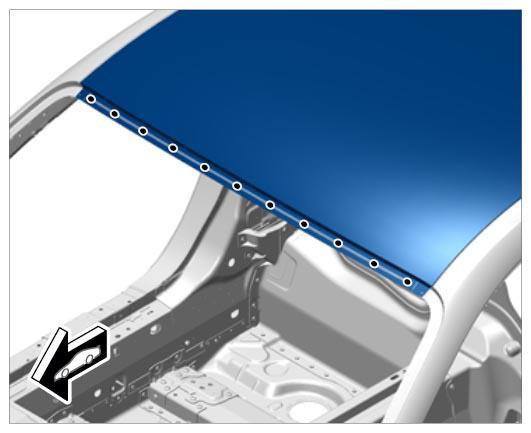

Resistance spot-weld the front of the roof.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

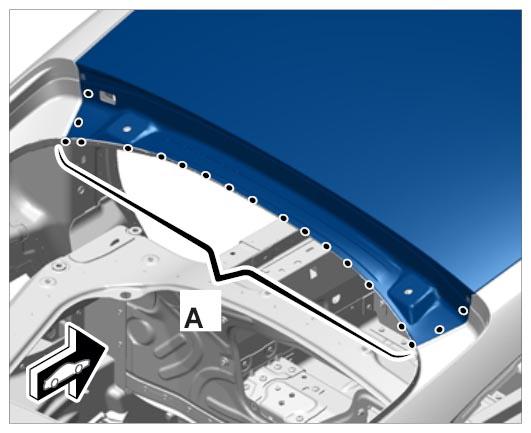

Resistance spot-weld the rear of the roof.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
