Removing Headrest Cover

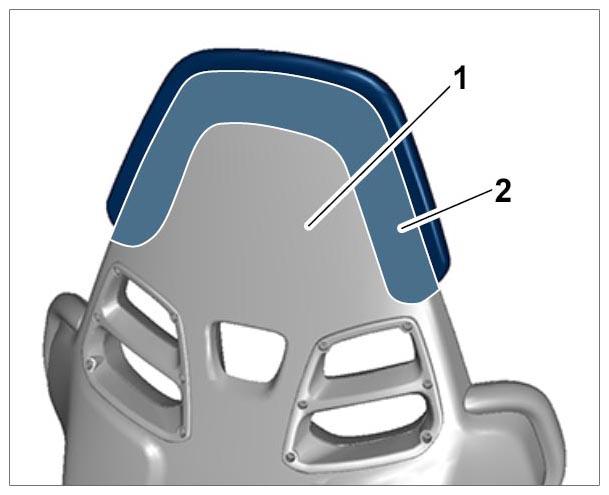

- Mask the seat backrest -1-
in the marked area -2-
with adhesive tape (2-3 layers).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

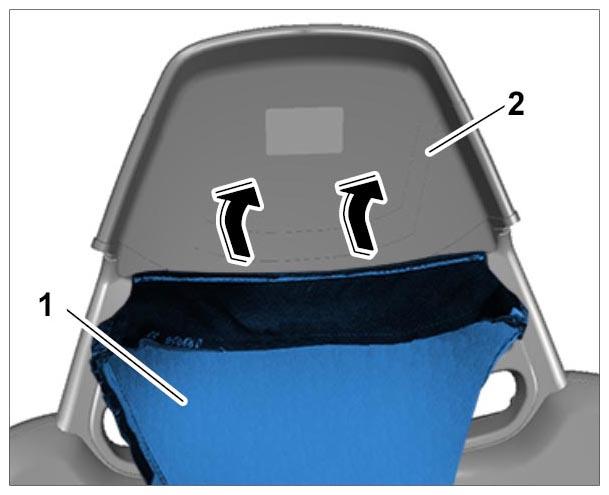

- Fold over the cover -1-
, starting at the bottom and carefully pull it out of the seat backrest -2-
(-arrows-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

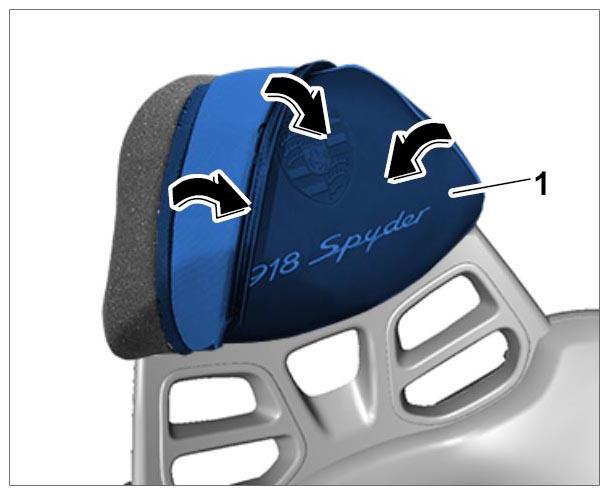

- Fold cover -1-
over the cushion -arrows-
and pull it off.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

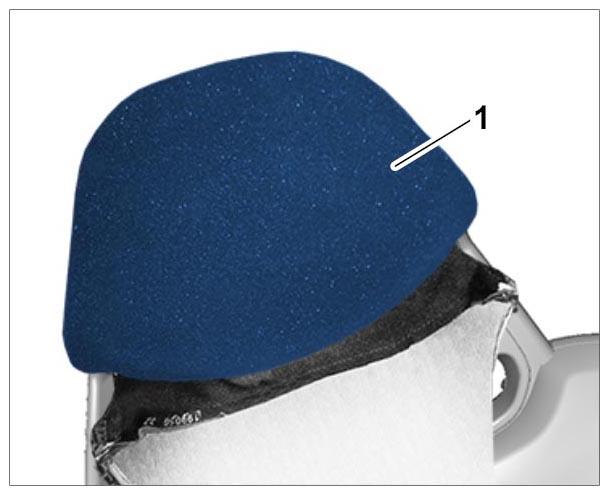

- Remove padding -1-
from the seat shell.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

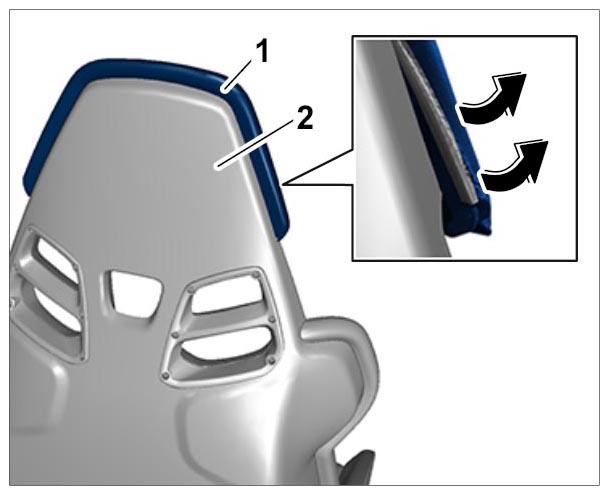

- Disengage cover -1-
from the seat shell -2-
(-arrows-
) and remove it.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
