Removing Cover For Front Middle Backrest
- Detach cover.

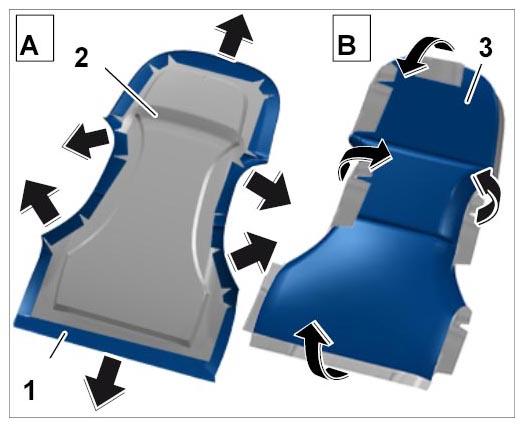

- 1.1. Release Velcro fasteners -1-
on the back of the padding -2-
all the way around Fig 1.
- 1.2. Fold cover -3-
over all the way around Fig 1.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

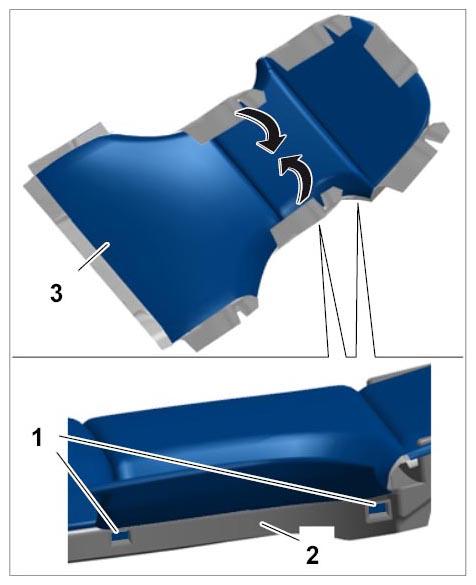

- Carefully detach Velcro strip -1-
on the cover -3-
from the Velcro fastener on the front of the padding -2-
(-arrows-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Remove cover.
