Installing Cover For Front Middle Backrest

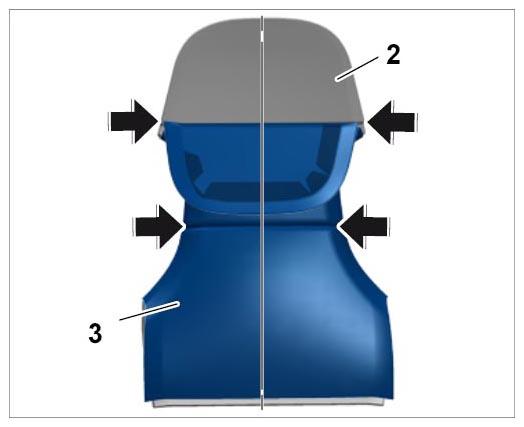

- Center the cover -3-
on the front of the padding -2-
(-arrow-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

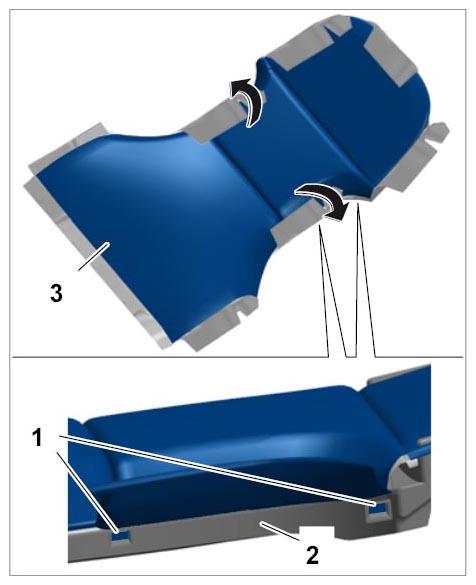

- Align Velcro strip on the cover -1-
with the Velcro fastener on the padding -2-
and press it on firmly -arrows-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

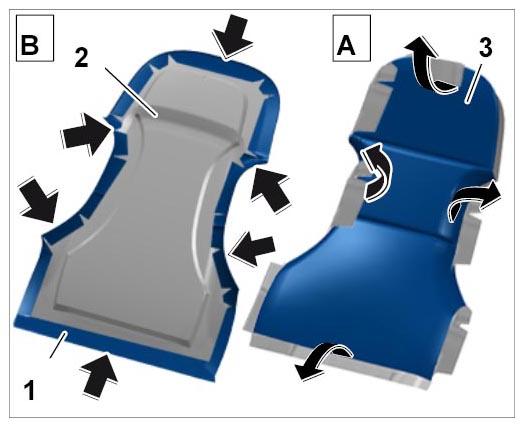

- Secure the cover.
- 3.1. Fold cover -3-
over all the way around (-arrows-
) and align it Fig 3.
- 3.2. Align Velcro strip -1-
on the cover with the Velcro fastener on the padding -2-
(-arrows-
) and secure it Fig 3.
- Press on Velcro fasteners on the back of the padding.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
