Removing Cover For Front Middle Backrest

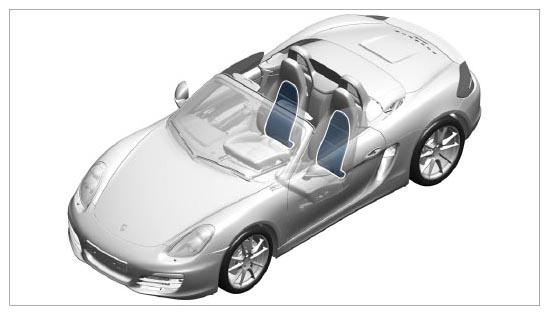

Fig 1: Identifying Cover For Front Middle Backrest Position
G10025937Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release rear cover.
    1. 1.1. Carefully press the cover out of the backrest shell -1-  using a plastic wedge -2-  to disengage it from the clips -3-  (-arrows-  ).

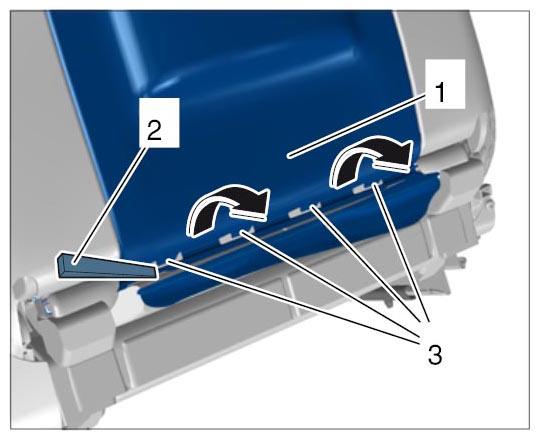

      2. Fig 2: Releasing Rear Cover
      G10025938Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release cover at the front.

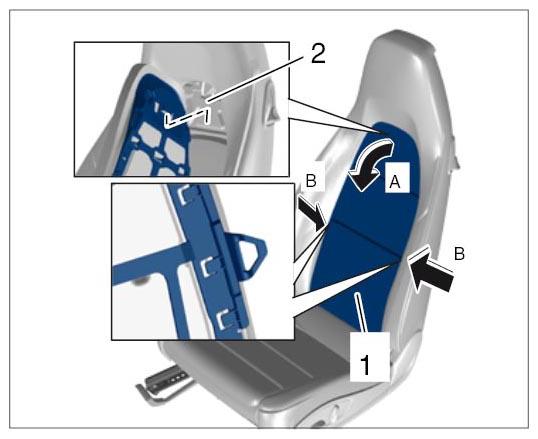

    Fig 3: Releasing Cover At Front
    G10025939Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. Press cover -1-  together slightly at the sides -arrows B-  and use a plastic wedge -3-  to disengage the locking mechanism -inset-  .
    2. 2.2. Insert your hand in behind the top of the cover -1-  and disengage it by pulling it up out of the backrest frame -2-  (-arrow A-  ).

      Information

      Carefully disengage cover for front middle backrest. Do not bend the retaining hook.

  3. Disconnect plug connections.
    1. 3.1. Disconnect plug connections for backrest heating -1-  (-arrows-  ).

      Information

      Mark plug connection assignment before disconnecting the plug connections.

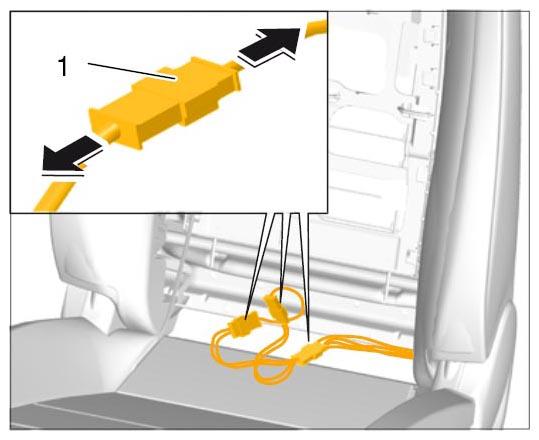

      2. Fig 4: Disconnecting Plug Connections
      G10025940Courtesy of PORSCHE CARS NORTH AMERICA, INC.
