Installing Cover For Front Middle Backrest

Place cover on the seat surface and plug in the plug connections for backrest heating -1- (-arrows- ).
Lay the line in the recess on the backrest frame.

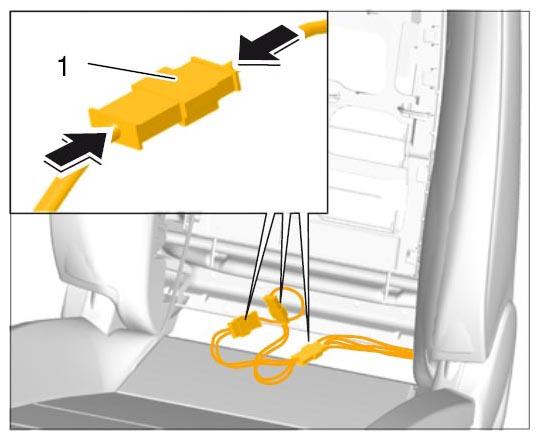

Fig 1: Connecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure front cover.
1. 2.1. Engage cover -1- at the top in the backrest frame -2- (-arrow B- ).
2. 2.2. Press in cover -1- in the middle -arrows A- until the locking lugs -inset- at the side engage.

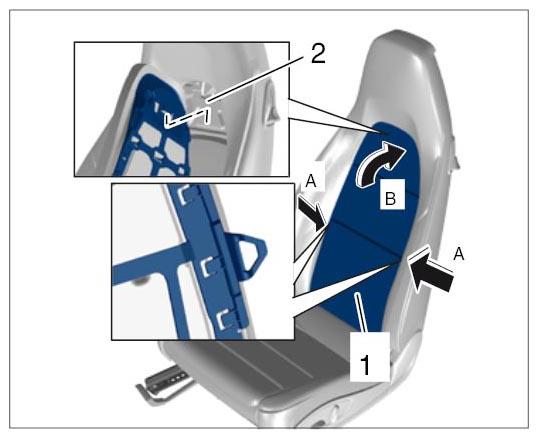

Fig 2: Securing Front Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure cover at the back.
1. 3.1. Press the cover into the backrest shell -1- at the bottom using a plastic wedge -2- to push it into the clips -3- (-arrows- ) until it locks with an audible click.

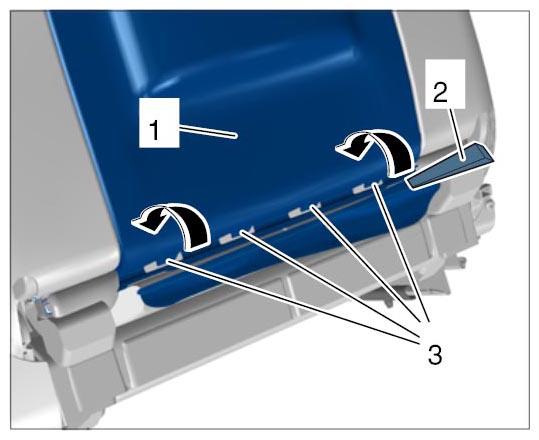

Fig 3: Securing Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
