Installing Cover For Front Backrest

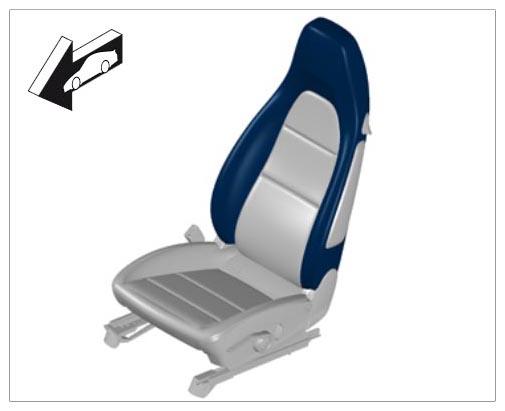

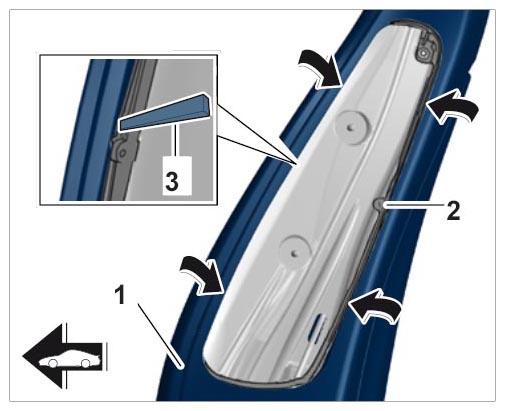

Fig 1: Identifying Cover For Front Backrest Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

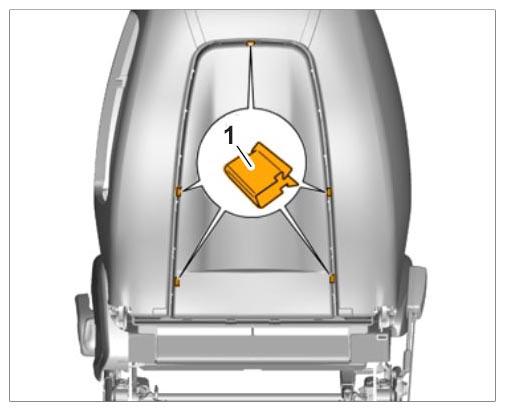

Check fastening clamps and fixing clips -1- and replace them if necessary.

Fig 2: Checking Clamps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

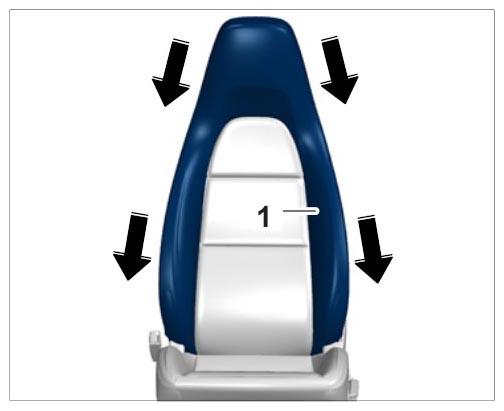

Pull on cover for backrest -1- and align with contour of padding.

Fig 3: Installing Cover For Backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press plastic strip -2- on cover for backrest -1- into the fixing clips -3- .

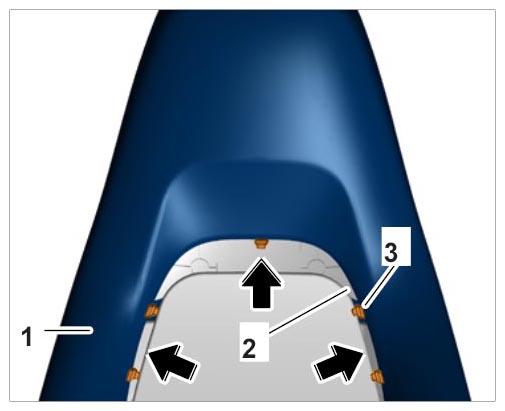

Fig 4: Pressing Plastic Strip On Cover For Backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

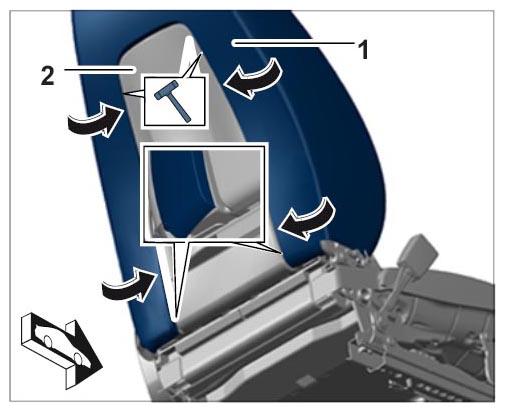

Press connection for backrest cover -1- at the rear into the cushion carrier -2- (-arrows- ) and tap gently into place (plastic hammer).

Fig 5: Pressing Connection For Backrest Cover At Rear Of Backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press connection of backrest cover -1- into the side airbag frame -2- with a plastic wedge -3- .

Fig 6: Securing Joint At Frame For Side Airbag
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

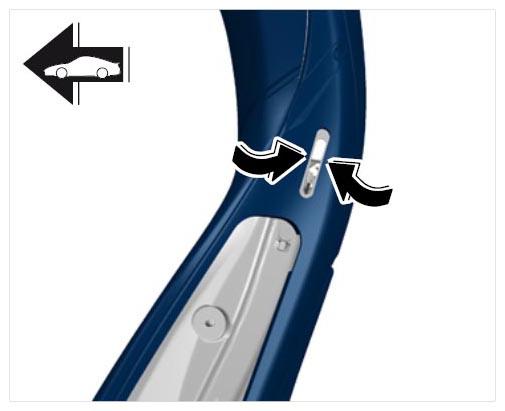

Engage connection at control button for backrest adjustment -arrows- .

Fig 7: Securing Connection At Frame For Backrest Release
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install side airbag. → INSTALLING FRONT SIDE AIRBAG .
Engage cover piping -1- right and left into backrest frame -2- .

Fig 8: Engaging Cover Piping
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

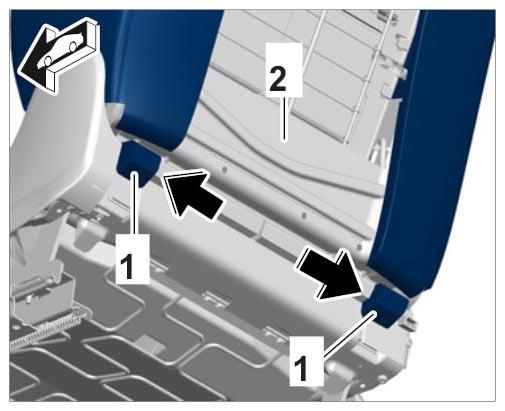

Slide cover for backrest -1- onto the cushion carrier -2- at the bottom left and right, starting at the middle and moving to the relevant side -arrows- .

Fig 9: Sliding Cover For Backrest At Bottom
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

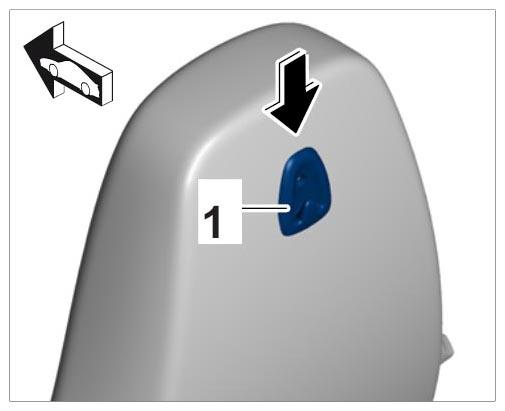

Position clothes hook -1- over of the cut-out and press down firmly until it engages securely.
