74 - Seat UPHOLSTERIES, Cover -- (981) BOXSTER/CAYMAN
>>
WM 741319 Removing And Installing Cover For Front Seat (Folding Sports Bucket Seat) (CAYMAN, CAYMAN S, CAYMAN "Black/Style Edition", BOXSTER, BOXSTER S, BOXSTER "Black/Style Edition", BOXSTER SPYDER, CAYMAN Gt4)
>>
Removing Cover For Front Seat
>>
Removing Seat Cushion (Front Part)
Removing Seat Cushion (Front Part)

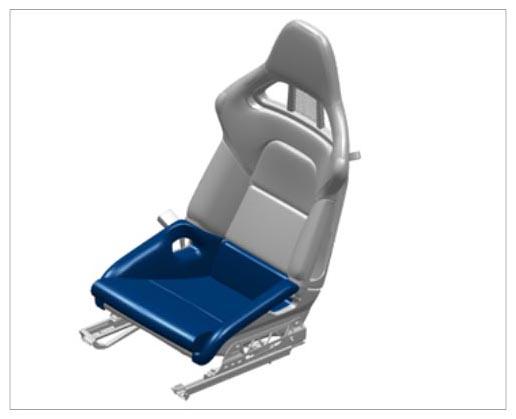

Fig 1: Identifying Seat Cover Position (Folding Sports Bucket Seat)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull seat cushion
-1-
off the Velcro fasteners
-2-
on the seat shell
-3-
(
-arrow-
).

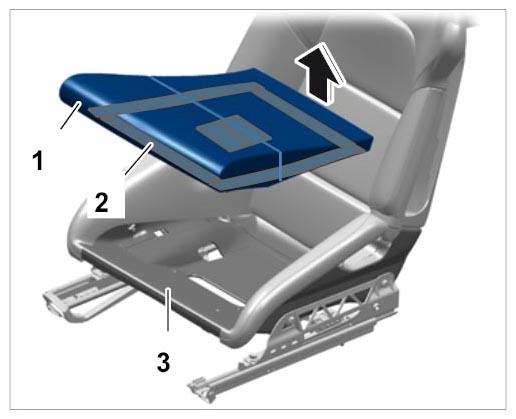

Fig 2: Removing Seat Cushion (Front Part)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
