Installing Suction Fan For Seat Surface

Information

• Ensure that the suction fan is installed at the correct position  .

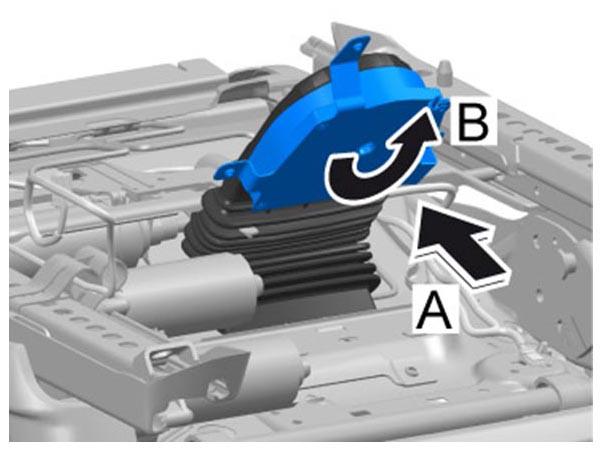

1. Insert suction fan for seat surface into the air duct -A-  , press it in and turn anti-clockwise -B-  until the suction fan is fully locked in the air duct.
   Fig 1: Fitting Suction Fan

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

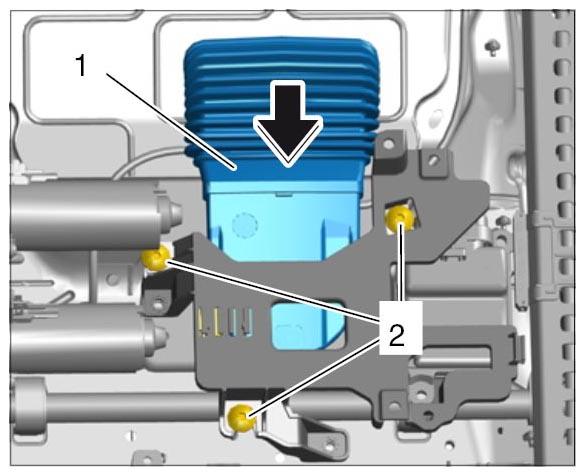

2. Slide the suction fan -1-  into the holder -Arrow-  and use the three fastening screws -2-  to secure the suction fan -1-  to the holder.
   Fig 2: Securing Suction Fan

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

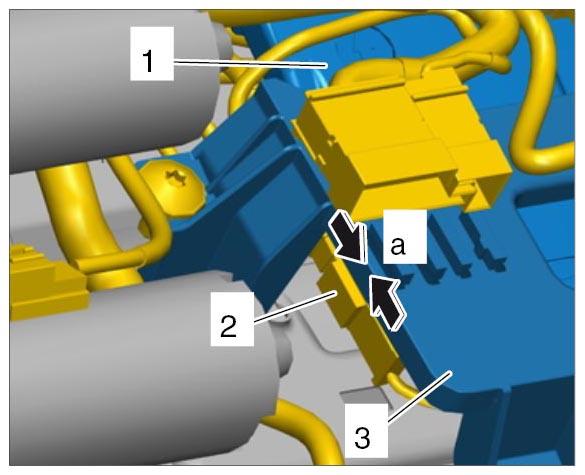

3. Connect the electric plug connection -2-  for the suction fan underneath the holder -3-  for the suction fan -a-  .
   Fig 3: Connecting Electric Plug Connection For Suction Fan

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

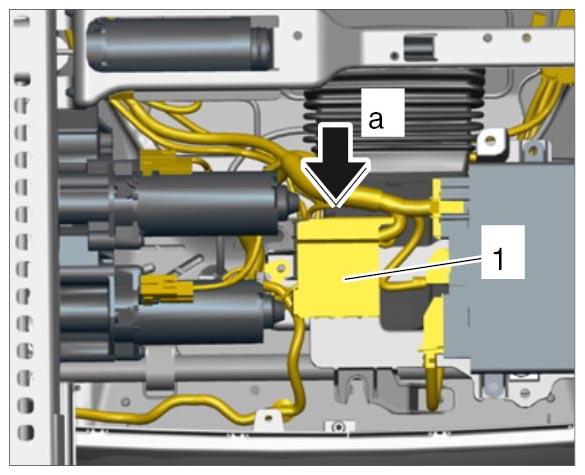

4. Plug the central connector -1-  into the mounting on the holder -a-  .
   Fig 4: Installing Central Connector In Mounting

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
