Installing Control Unit For Memory Seat Adjustment

  1. Plug in electric plug connections -3, 4-  until they engage securely.
  2. Plug in electric plug connection -2-  and lock the securing clip.

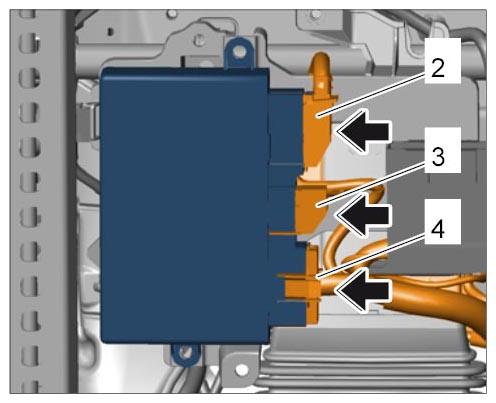

    3. Fig 1: Connecting Electric Plug Connections
    G10027972Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Position control unit on the holder.
  4. Screw in and tighten fastening screws -1-  on the control unit.

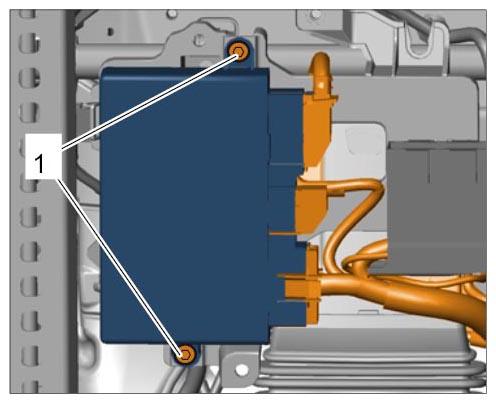

    Fig 2: Identifying Control Unit Mounting
    G10027973Courtesy of PORSCHE CARS NORTH AMERICA, INC.
