Removing Motor For Seat Adjustment

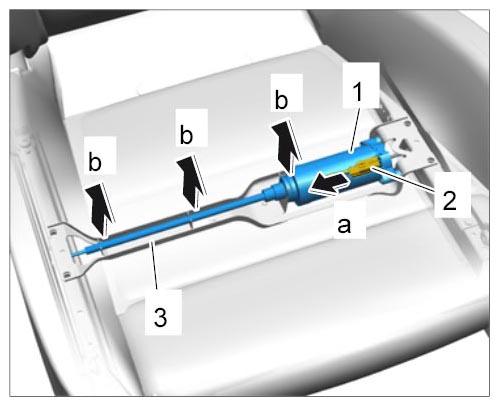

- Disconnect motor for seat adjustment.
- 1.1. Disconnect electric plug connection -2-
on the seat-adjustment motor -1-
(-a-
).
- 1.2. Unclip the motor -1-
and guide sleeve from the retainer plate -3-
for the seat-adjustment motor -b-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

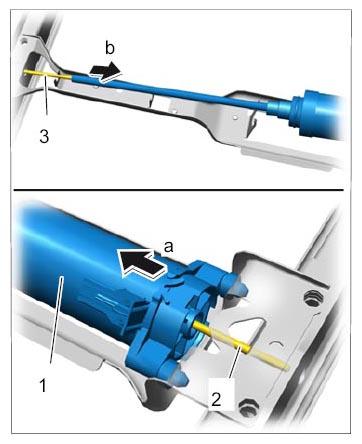

- Remove the motor.
- 2.1. Pull the motor -1-
off the long drive shaft -3-
(-b-
).
- 2.2. Pull motor for seat adjustment -1-
off the short drive shaft -2-
(-a-
) and remove the motor.
- 2.3. Pull out the drive shafts and check for damage. Replace the drive shafts if necessary.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
