Removing Lumbar Support

  1. Remove lumbar support.
    1. 1.1. Lift up lumbar support -A-  .
    2. 1.2. Release fastening clips -1-  from the retaining pins -2-  (-B-  ).
    3. 1.3. Remove lumbar support from the base carrier -3-  .

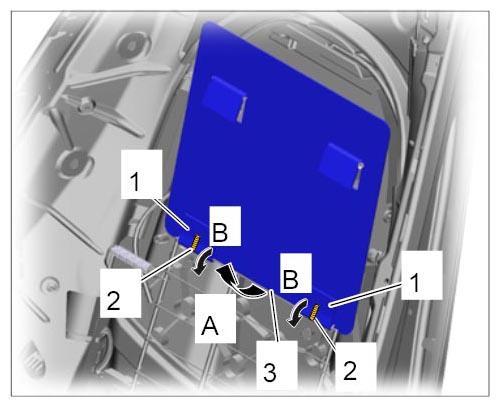

      Fig 1: Removing Lumbar Support
      G10027917Courtesy of PORSCHE CARS NORTH AMERICA, INC.
