Installing Lumbar Support

  1. Install lumbar support.
    1. 1.1. Position lumbar support on the base carrier -3-  .
    2. 1.2. Place fastening clips -1-  around the base carrier -3-  .
    3. 1.3. Secure fastening clips -1-  on the retaining pins -2-  (-A-  ).

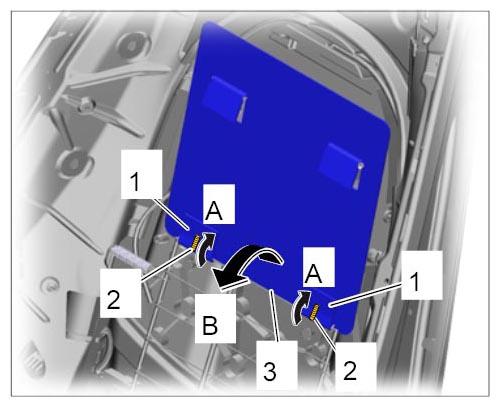

      Fig 1: Installing Lumbar Support
      G10027918Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Install control valve for lumbar support adjustment. → Installing Motor For Lumbar Support  .
  3. Move lumbar support to its original position -B-  .
  4. Connect the battery.
  5. Carry out a function test on the lumbar support.
  6. Disconnect the battery.
