Installing Lower Part Of Lock

  1. Install lower part of lock.
    1. 1.1. Position lower part of lock -2-  on the seat shell -3-  (-arrow-  ).
    2. 1.2. Fit fastening nuts -1-  and tighten them so that the lower part of the lock -2-  can still be moved.
    3. 1.3. Adjust lower part of lock. → Adjusting Lock For Backrest Adjustment  .

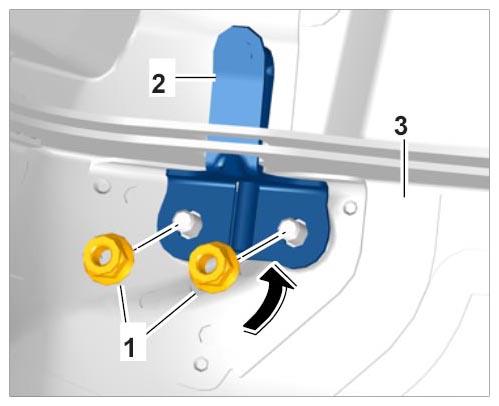

      4. Fig 1: Installing Lower Part Of Lock
      G10027907Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Check bonding points -1-  on the foam part -2-  and apply new adhesive if necessary.
  3. Position foam part -2-  (-arrows-  ) and press it on at the bonding points -1-  .

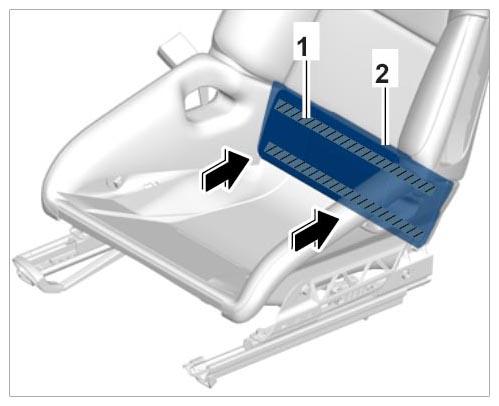

    4. Fig 2: Installing Foam Part Of Seat
    G10027908Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Align cover -1-  with the side bolsters.

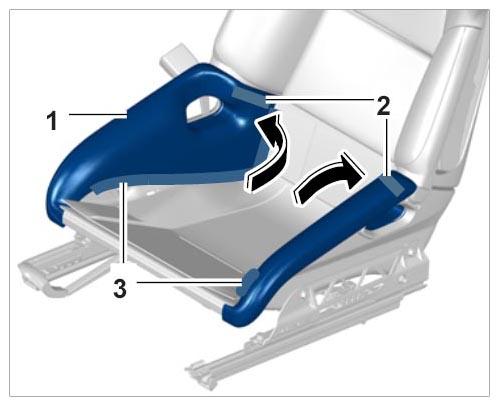

    Fig 3: Pressing Velcro Fasteners
    G10027909Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Make sure the Velcro fasteners join cleanly.

  5. Press on Velcro fasteners -2-  and -3-  (-arrows-  ).
