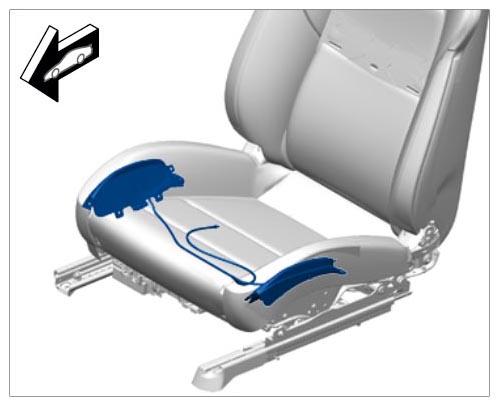

Removing Air Cushion For Seat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Disconnect air connection line to air cushion for seat.

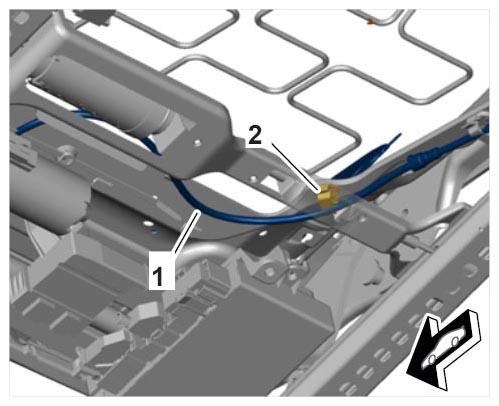

- 1.1. Release air connection line -1-
from the clip -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

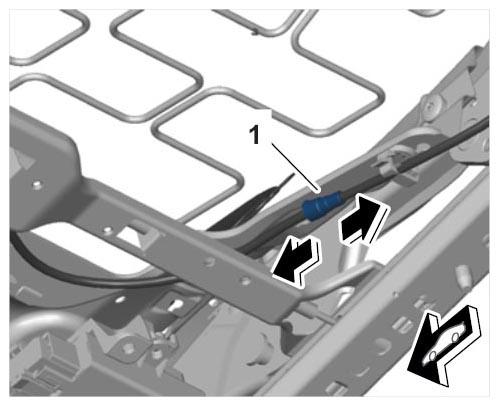

- 1.2. Disconnect connection coupling for air connection line -1-
on the underside of the seat -inset-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

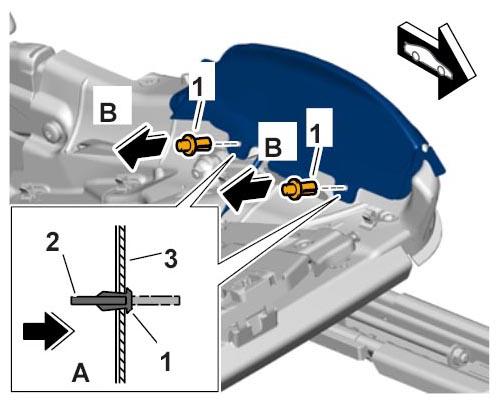

- Press the pins -2-
on the two expanding clips -1-
through -arrow A-
and remove expanding clips -1-
(-arrows B-
).
- Remove air cushion for seat -3-
.
