Removing Front Seat

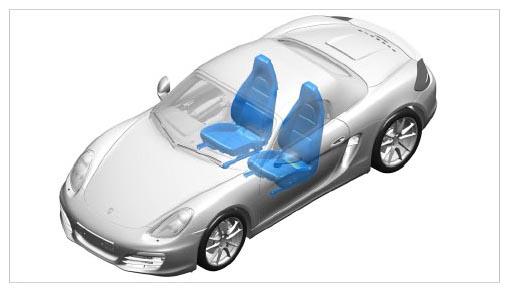

Fig 1: Overview Of Front Seat

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Avoid small bending radii when routing lines.

→ File down edges and burrs in the routing area or mask them with adhesive tape.

→ Maintain a sufficient distance from components exposed to high temperatures while driving.

Information

When unlocking, make sure that none of the locking lugs break off.

1. Remove seat rail cover.
   1. 1.1. Insert a narrow screwdriver -1-  under the locking lugs and press upwards slightly.
   2. 1.2. Remove seat rail covers -2-  on the left and right seat rails by pulling them towards the front.

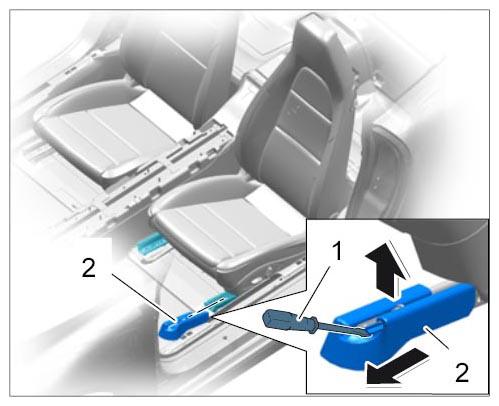

      Fig 2: Removing Seat Rail Cover

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
