Installing Headliner

Information

Make sure that the roof cover does not buckle.

1. Fit the headliner.
   1. 1.1. Two people are needed in order to fit the headliner.
      1. 1.1.1. Position of first person: Driver's door
      2. 1.1.2. Position of second person: Passenger's door
   2. 1.2. Guide the headliner through the door aperture and side window aperture into the passenger compartment.
   3. 1.3. Two people must now lift up the headliner, position it and clip it into the adjusting elements at the rear.

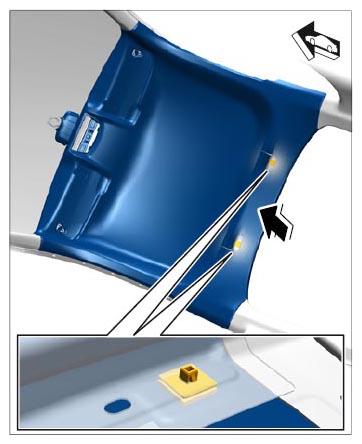

      Fig 1: Clipping Headliner At Rear

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   4. 1.4. Check that the headliner is seated correctly at the front.
2. Screw in fastening screws close to the roof console -arrows-  .

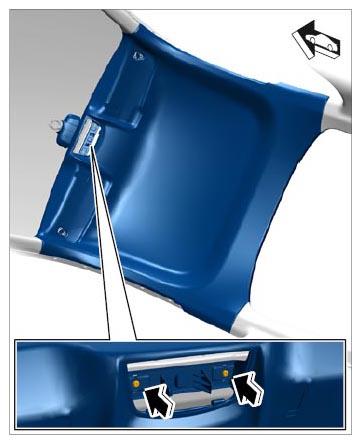

   Fig 2: Securing Headliner

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Install sun visor holder.

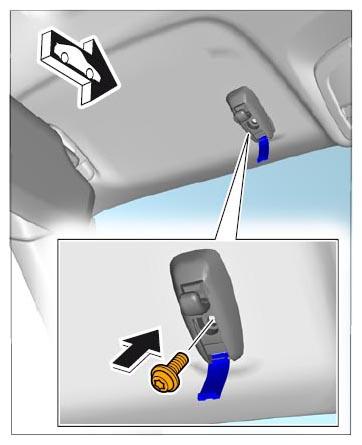

   Fig 3: Installing Sun Visor Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 3.1. Position sun visor holder -arrow-  .
   2. 3.2. Screw in fastening screw → Tightening torque: 5.5 Nm (4 ftlb.)  until secure.
   3. 3.3. Close the cover until it engages securely -arrow-  .

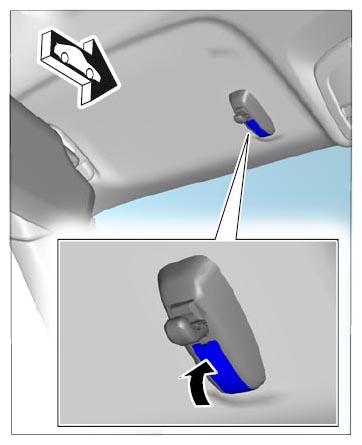

      Fig 4: Closing Sun Visor Cover

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Fit rubber door seal -1-  on the body flange close to the headliner -arrows-  .

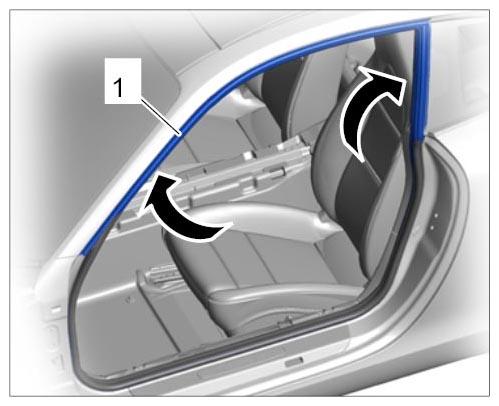

   Fig 5: Securing Rubber Seal

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Move driver's and passenger's seat backrest back to its original position.
