Installing Front Roof Trim Panel

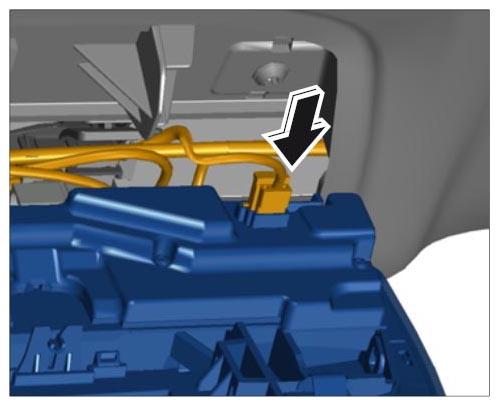

Push on plug connection -arrow- until it engages securely.

Fig 1: Securing Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Engage roof trim panel at the two retaining clips -arrow- .

Fig 2: Engaging Roof Trim Panel Headliner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

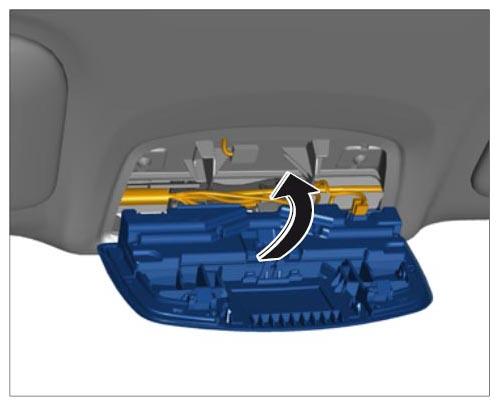

Tilt roof trim panel into position and clip it in place -arrow- until it is securely engaged.

Fig 3: Clipping Roof Trim Panel Into Place
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
