Installing A-Pillar Trim Panel

Information

Always use a new clip following removal.

1. Replace crash clip.

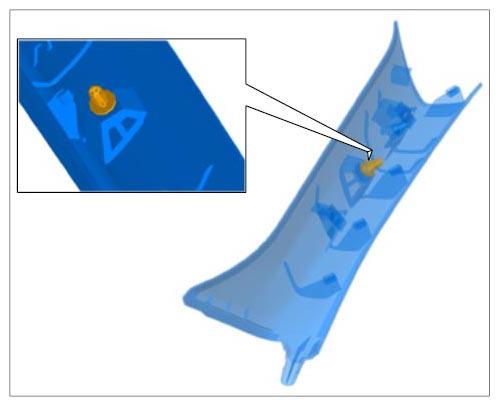

   Fig 1: Replacing Clip

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Swivel in trim panel and position the guide lugs.
3. Clip trim panel into the window frame.
4. Lift up rubber seal for door using a plastic wedge along the A-pillar trim panel.
5. Check that the trim panel is seated correctly.
