Technical Values

Location	Description	Type	Basic value	Tolerance 1

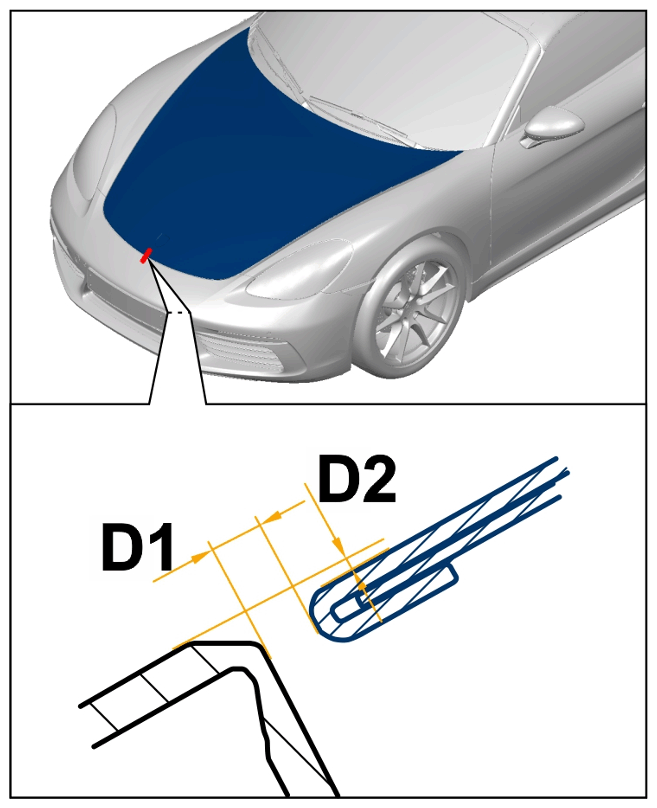

Lid to front apron (D1		Gap dimension	3.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front lid
Lid to front apron (D2)		Gap dimension	1 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front lid

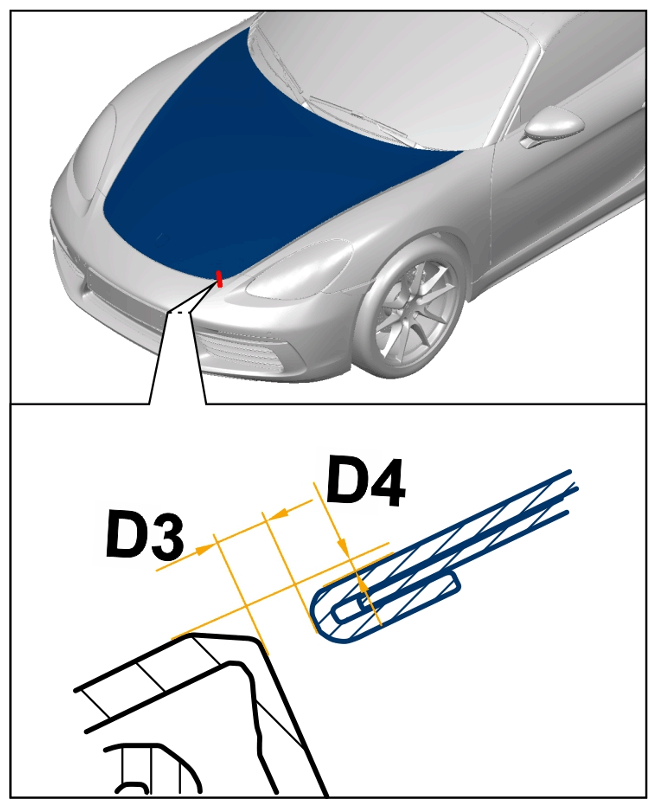

Lid to front apron (D3)		Gap dimension	3.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front lid
Lid to front apron (D4)		Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front lid

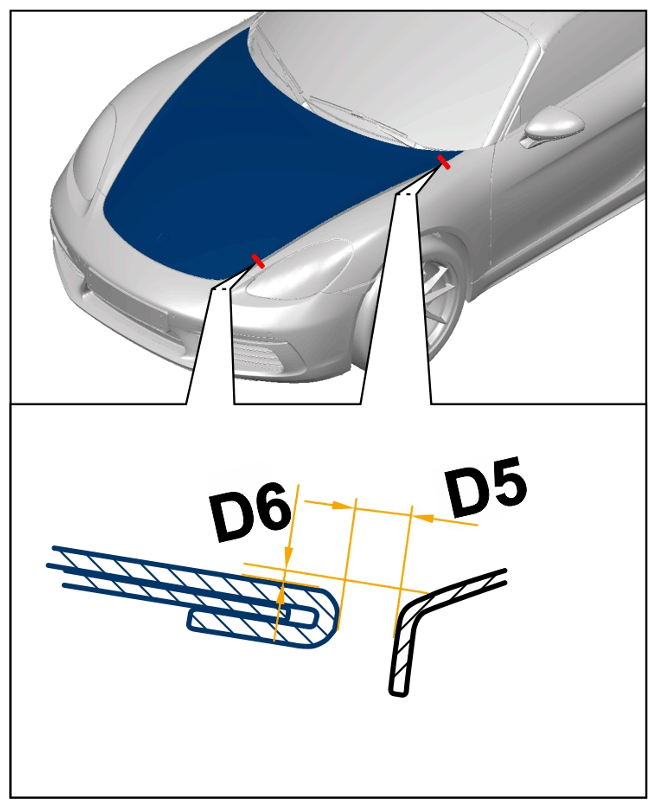

Lid to wing (D5)		Gap dimension	3.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front lid
Lid to wing (D6)		Gap dimension	0.3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front lid

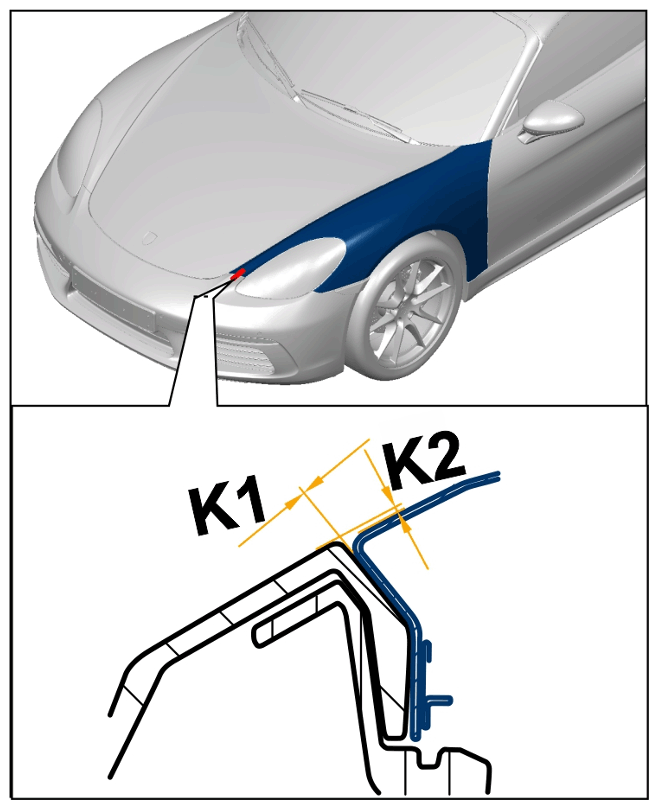

Wing to front apron (K1)		Gap dimension	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front wing
Wing to front apron (K2)		Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front wing

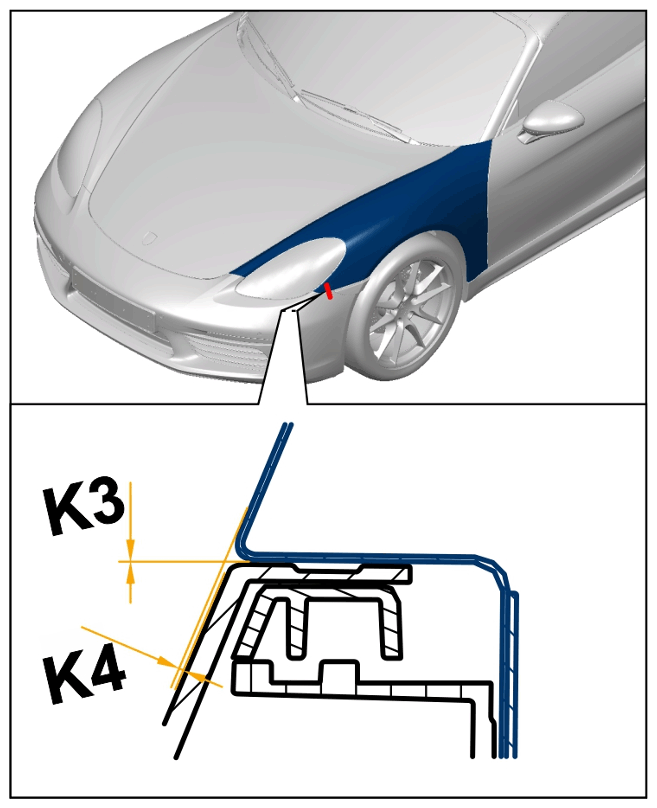

Wing to front apron (K3)		Gap dimension	0 mm	+ 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front wing
Wing to front apron (K4)		Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front wing

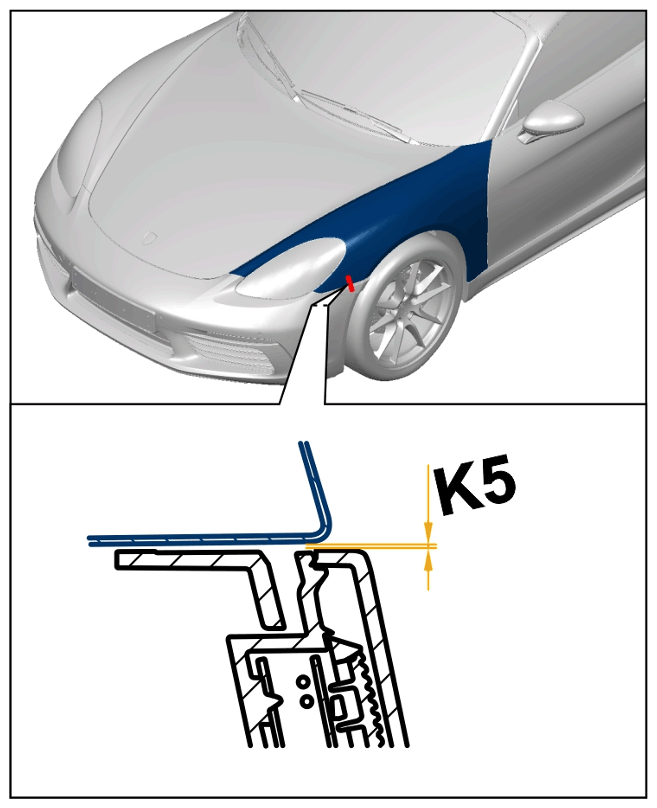

Wing to side direction indicator (K5)		Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front wing

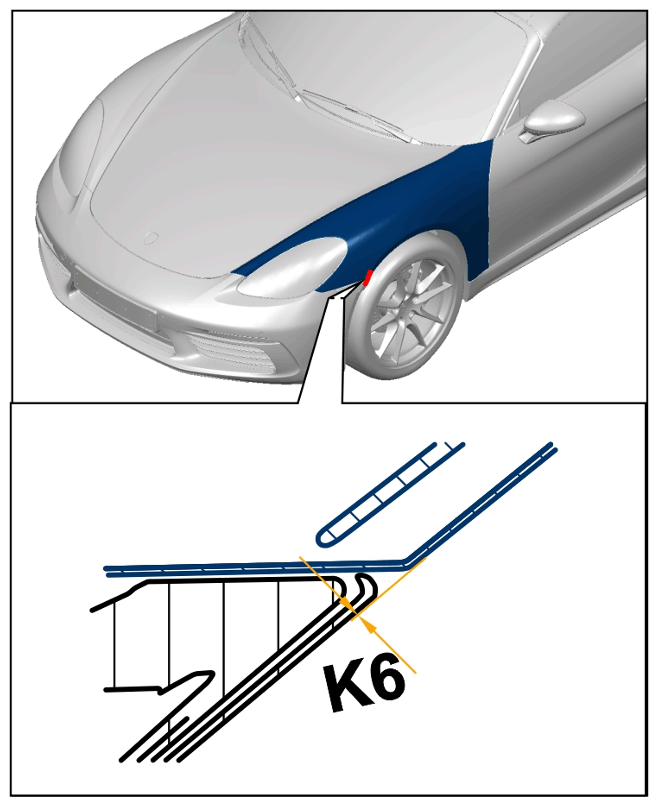

Wing to side direction indicator (K6)		Gap dimension	0 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front wing

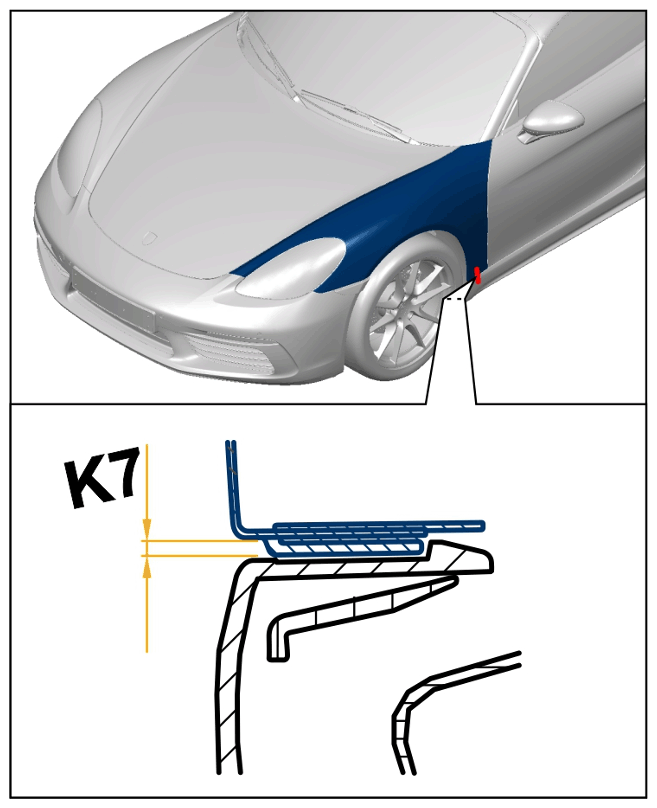

Wing to door entry guard (K7)		Gap dimension	3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front wing

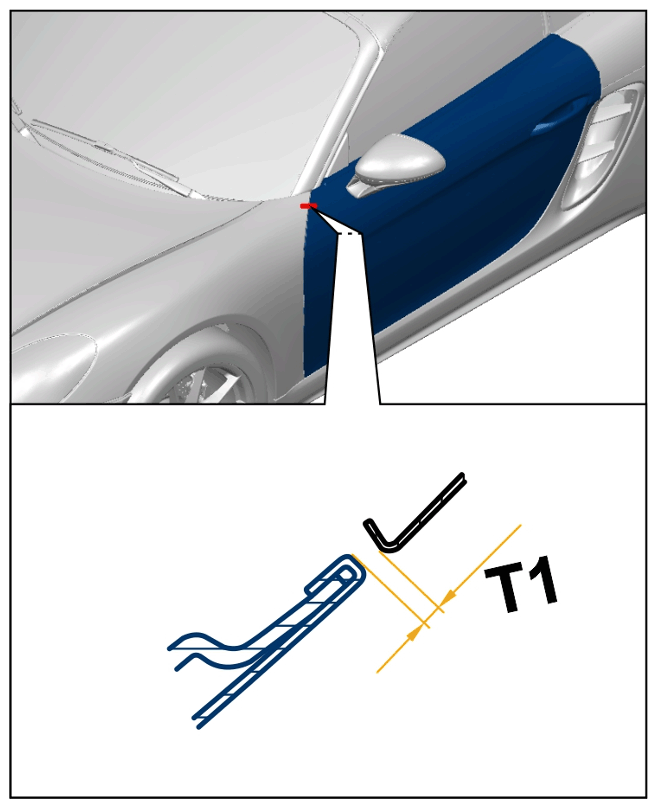

Front door to wing (T1)		Gap dimension	3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door

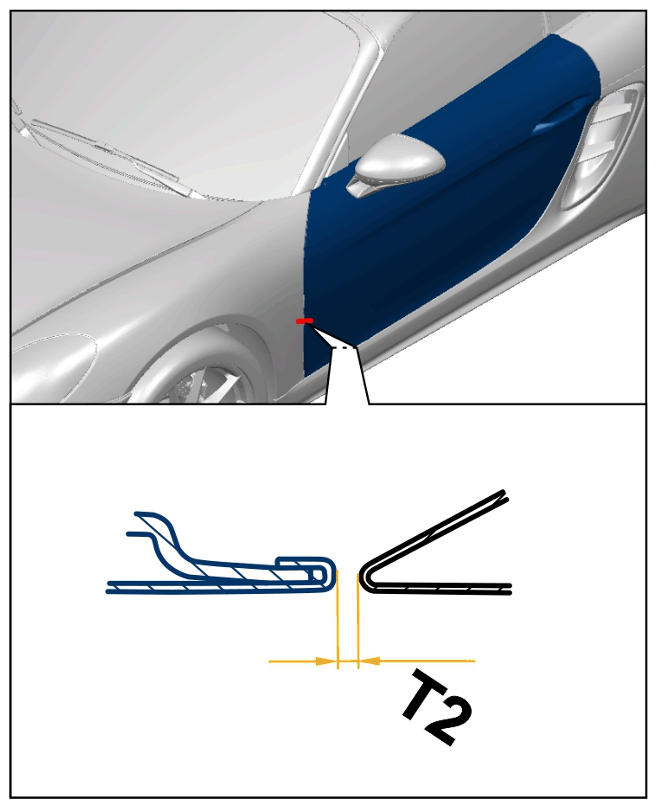

Front door to wing (T2)		Gap dimension	3.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door
Front door to door entry guard (T3)		Gap dimension	3.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door
Front door to door entry guard (T4)		Gap dimension	1.3 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door

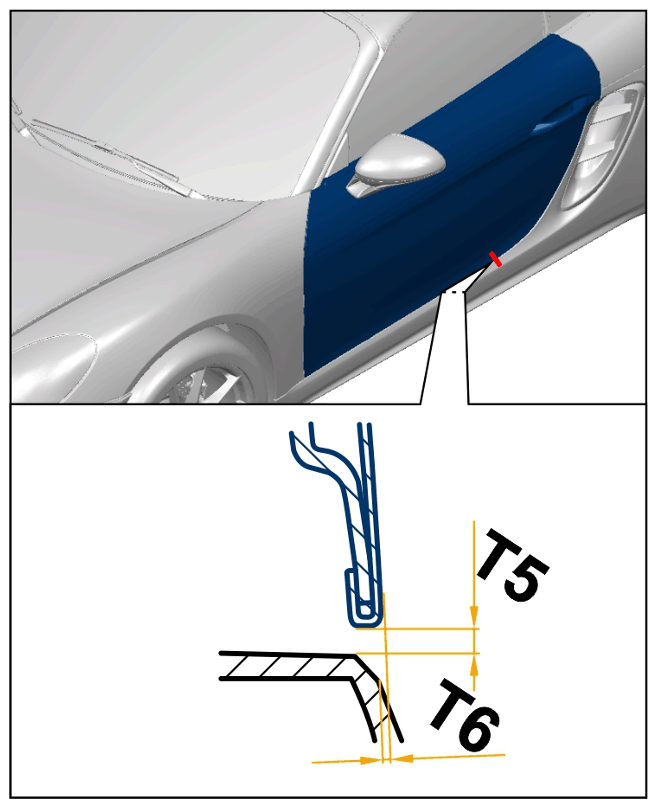

Front door to door entry guard (T5)		Gap dimension	3.5 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door
Front door to door entry guard (T6)		Gap dimension	1 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door

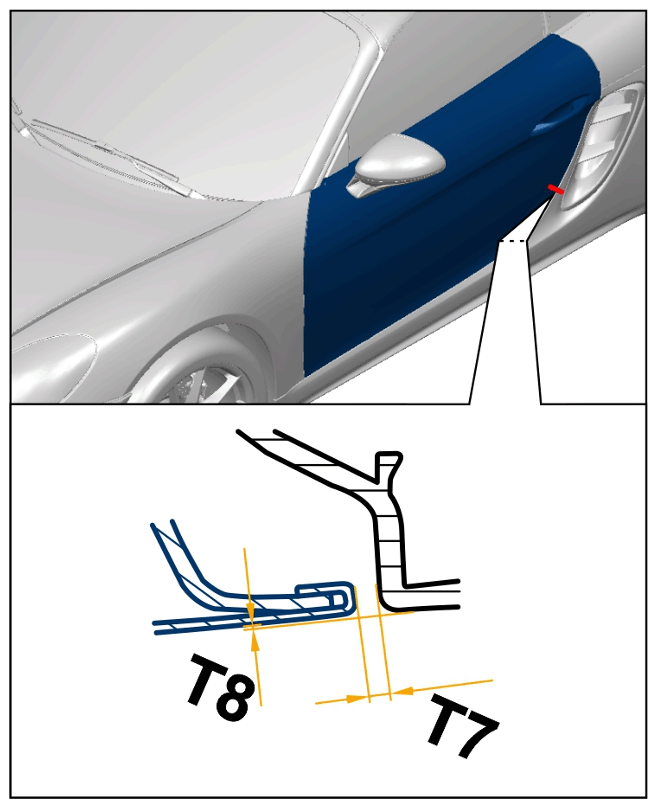

Front door to door entry guard (T7)		Gap dimension	3 mm	0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door
Front door to door entry guard (T8)		Gap dimension	0.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door

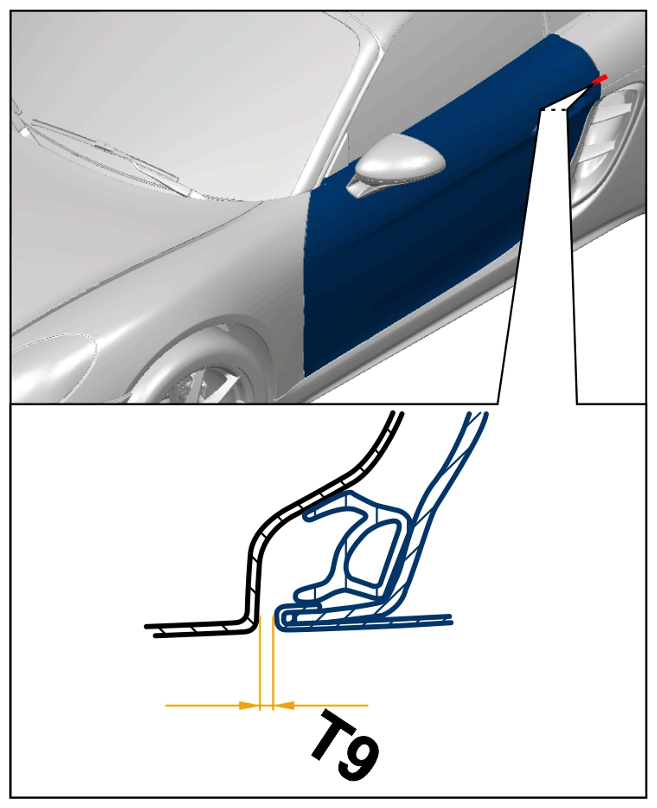

Front door to rear wing (T9)		Gap dimension	3 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door

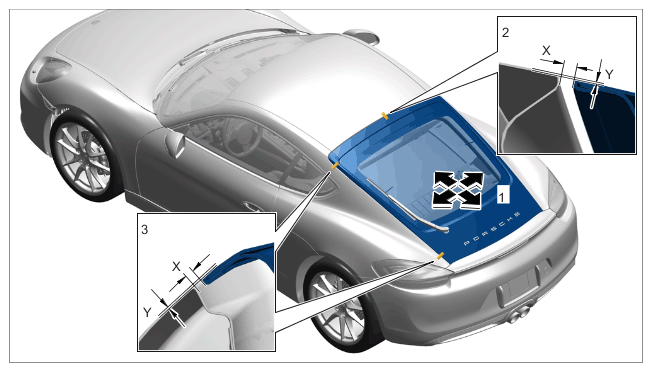

Gap between roof and rear lid	Illustration 2, pos. X	Gap dimension	5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting rear lid
Gap between roof and rear lid	Illustration 2, pos. Y	Gap dimension	0 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting rear lid
Gap between rear lid and side panel	Illustration 3, pos. X	Gap dimension	3.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting rear lid
Gap between rear lid and side panel	Illustration 3, pos. Y	Gap dimension	0 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting rear lid

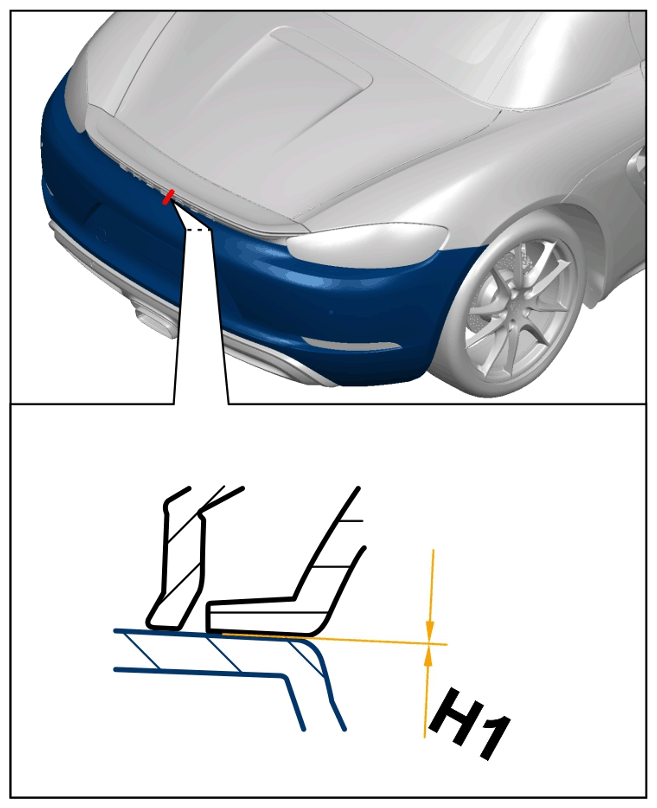

Rear apron to logo trim (H1)		Gap dimension	0 mm	+ 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of rear apron

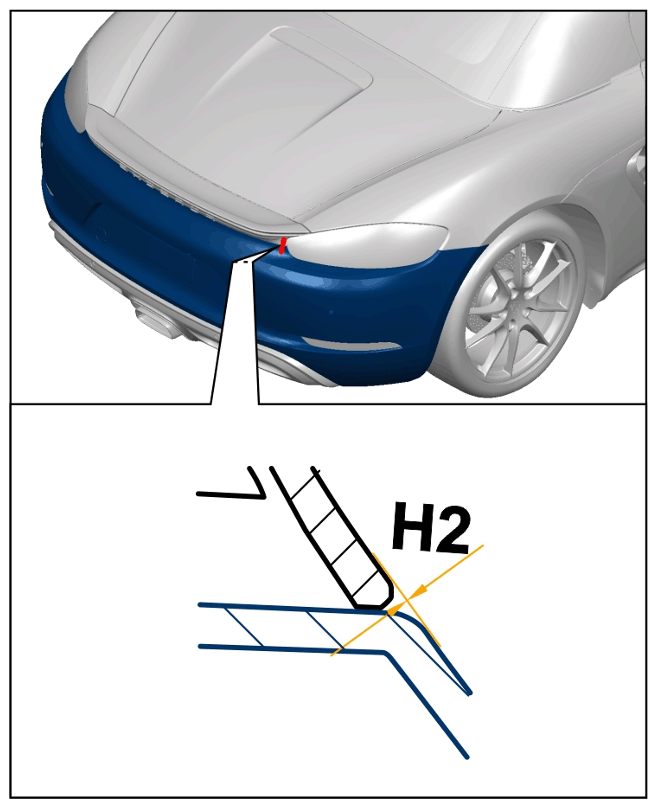

Rear apron to logo trim (H2)		Gap dimension	0 mm	-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of rear apron
Rear apron to tail light (H3)		Gap dimension	1 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of rear apron
