Gap Dimensions Of Rear Lid

Location	Description	Type	Basic value	Tolerance

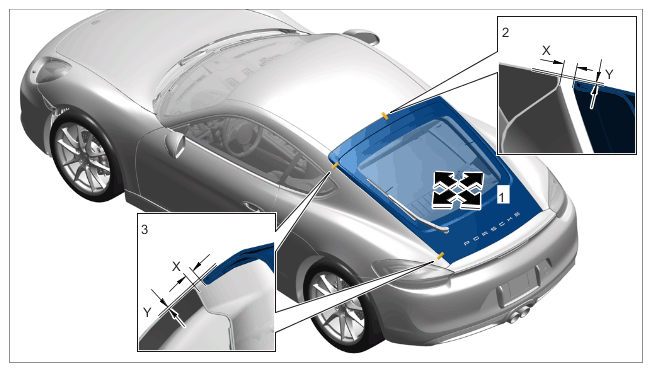

Gap between roof and rear lid	Illustration 2, pos. X	Gap dimension	5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting rear lid
Gap between roof and rear lid	Illustration 2, pos. Y	Gap dimension	0 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting rear lid
Gap between rear lid and side pane	1 Illustration 3, pos. X	Gap dimension	3.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting rear lid
Gap between rear lid and side pane	1 Illustration 3, pos. Y	Gap dimension	0 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting rear lid
