Gap Dimensions Of Front Wing

Location	Type	Basic value	Tolerance

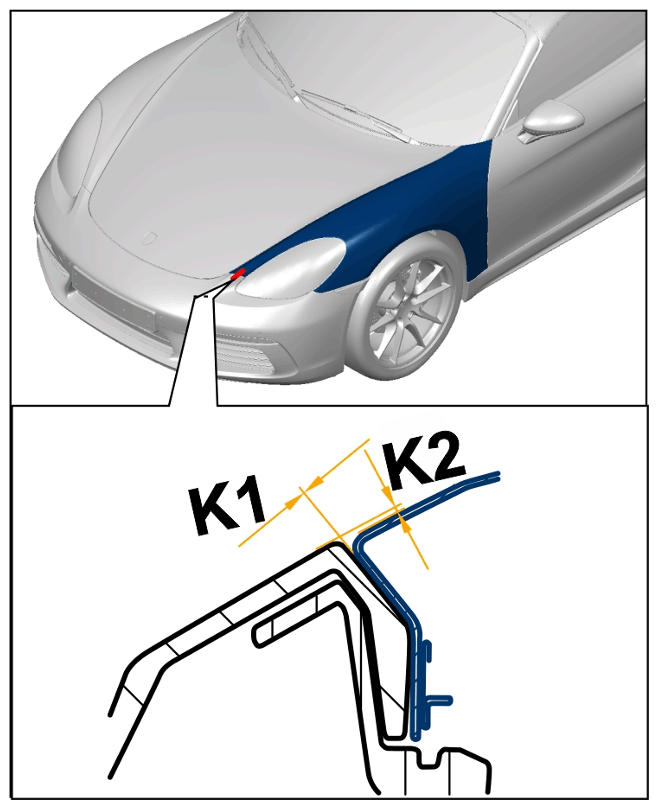

Wing to front apron (K1)	Gap dimension	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front wing
Wng to front apron (K2)	Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front wing

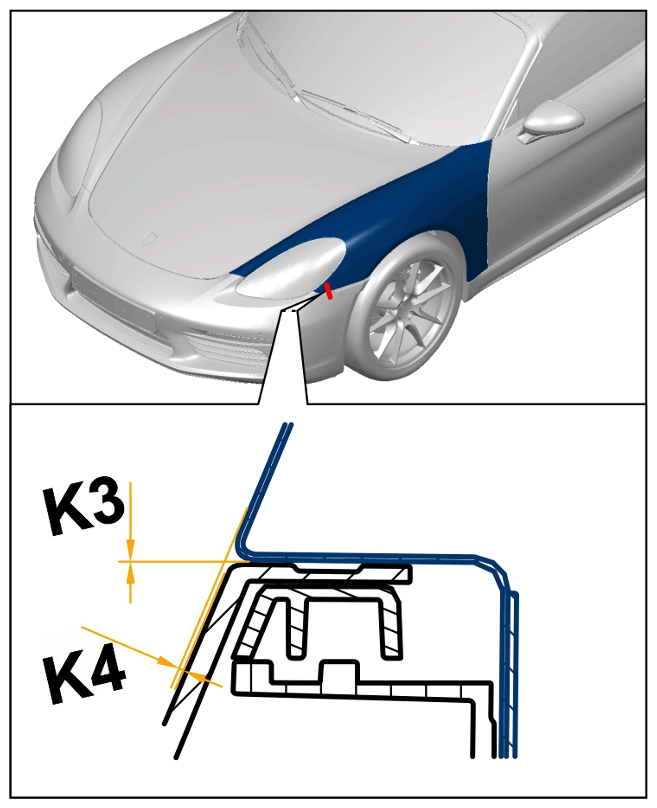

Wing to front apron (K3)	Gap dimension	0 mm	+ 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front wing
Wng to front apron (K4)	Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front wing

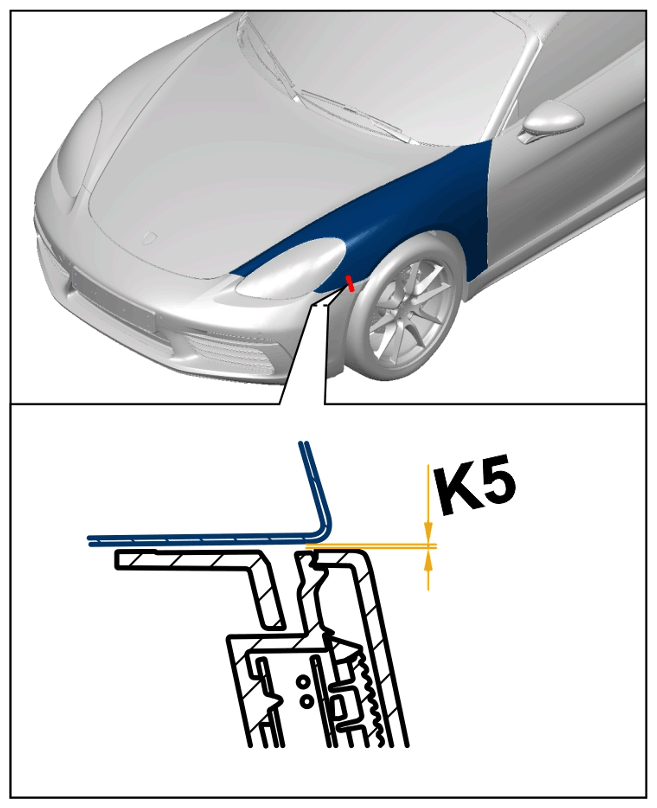

Wing to side direction indicator (K5)	Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front wing

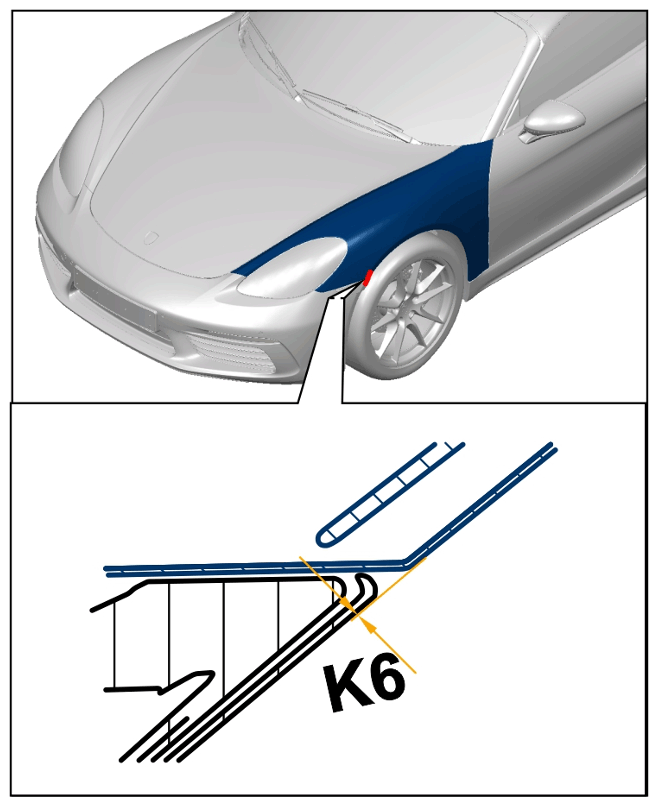

Wng to side direction indicator (K6)	Gap dimension	0 mm	+/-1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front wing

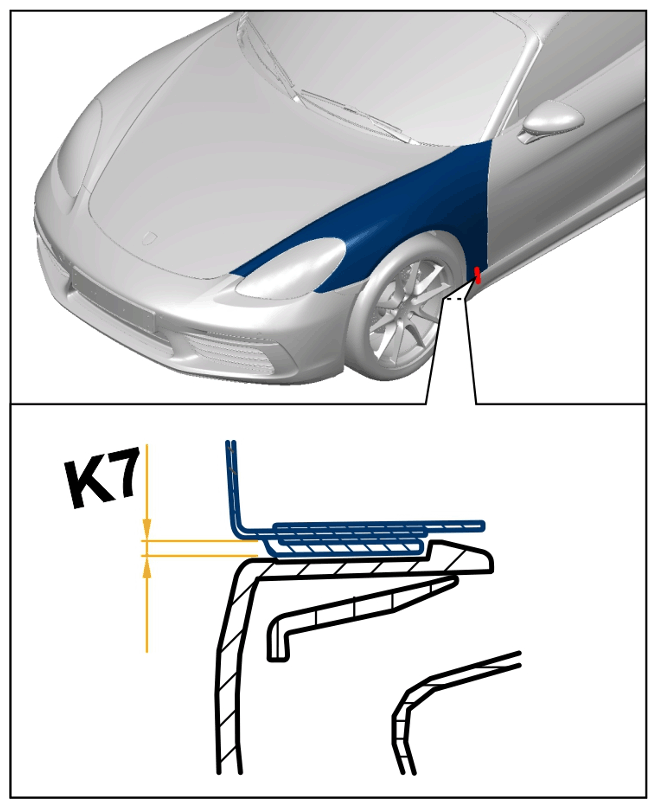

Wng to door entry guard (K7)	Gap dimension	3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front wing
