Gap Dimensions Of Front Lid

Location	Type	Basic value	Tolerance

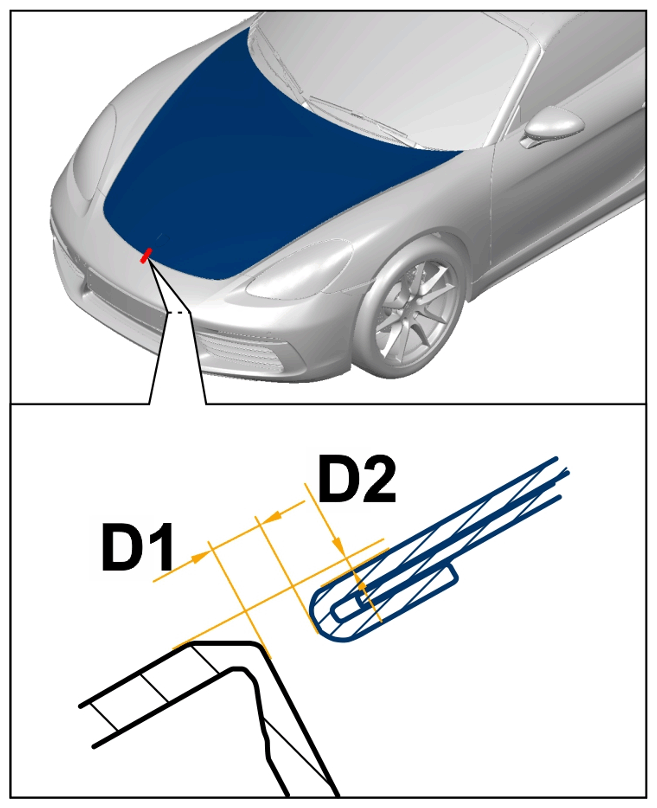

Lid to front apron (D1)	Gap dimension	3.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front lid
Lid to front apron (D2)	Gap dimension	1 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front lid

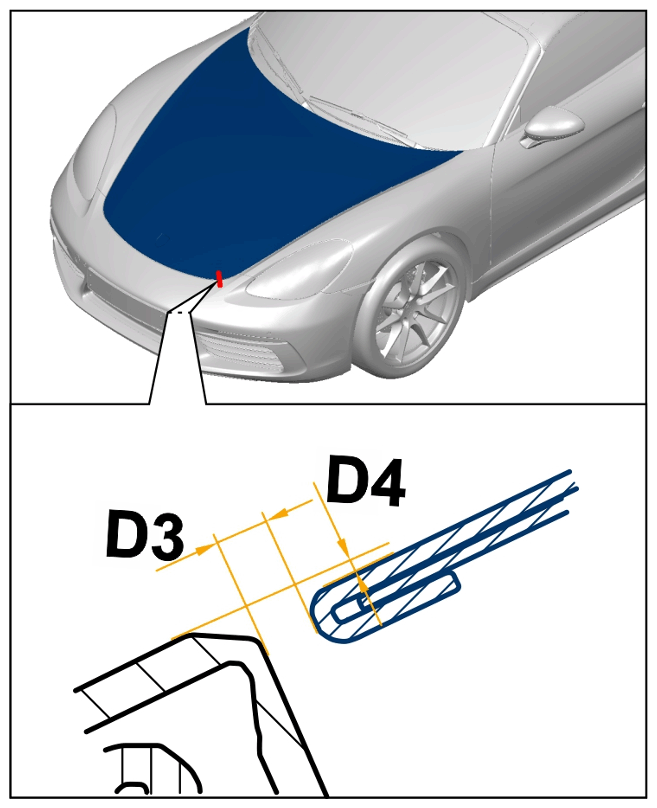

Lid to front apron (D3)	Gap dimension	3.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front lid
Lid to front apron (D4)	Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front lid

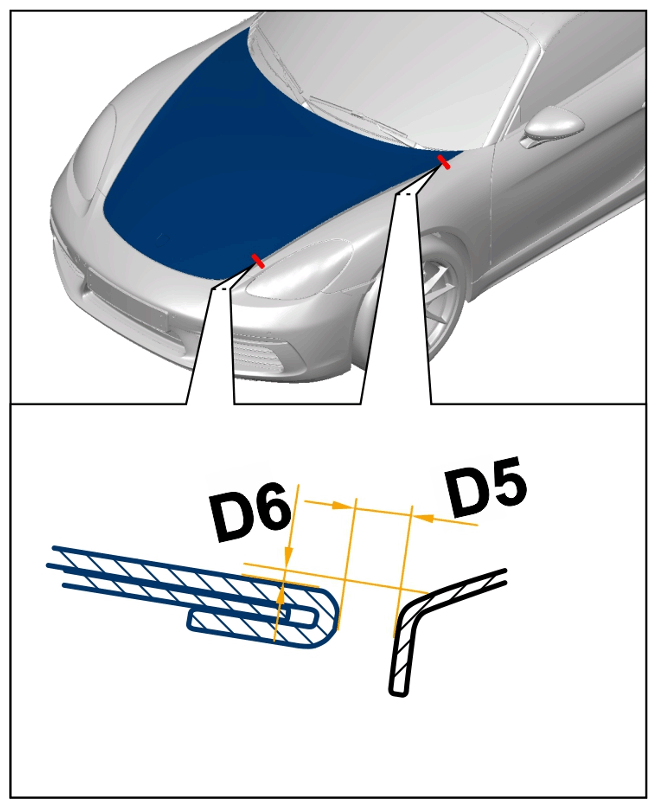

Lid towing (D5)	Gap dimension	3.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front lid
Lid towing (D6)	Gap dimension	0.3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front lid
