Gap Dimensions Of Front Door

Location	Type	Basic value	Tolerance

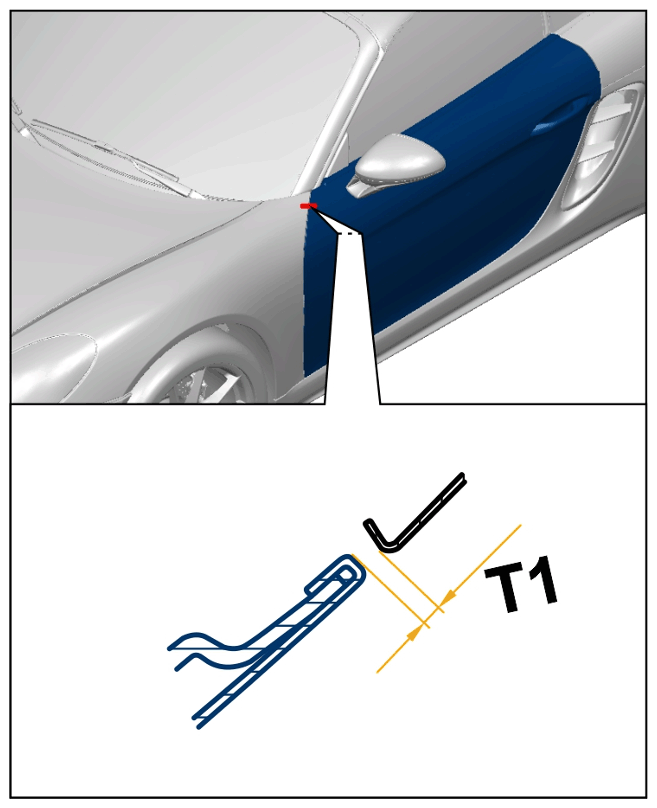

Front door to wing (T1)	Gap dimension	3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door

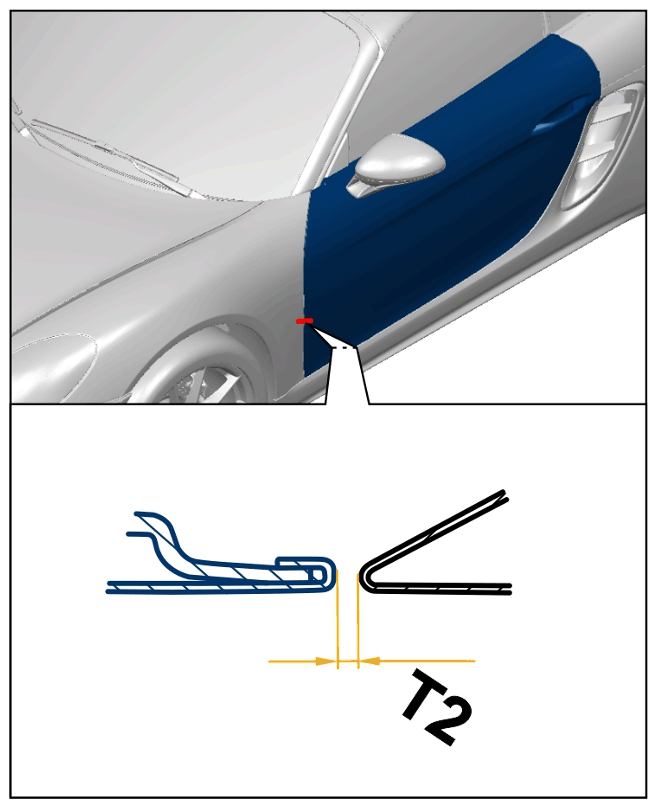

Front door to wing (T2)	Gap dimension	3.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door
Front door to door entry guard (T3)	Gap dimension	3.5 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door
Front door to door entry guard (T4)	Gap dimension	1.3 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door

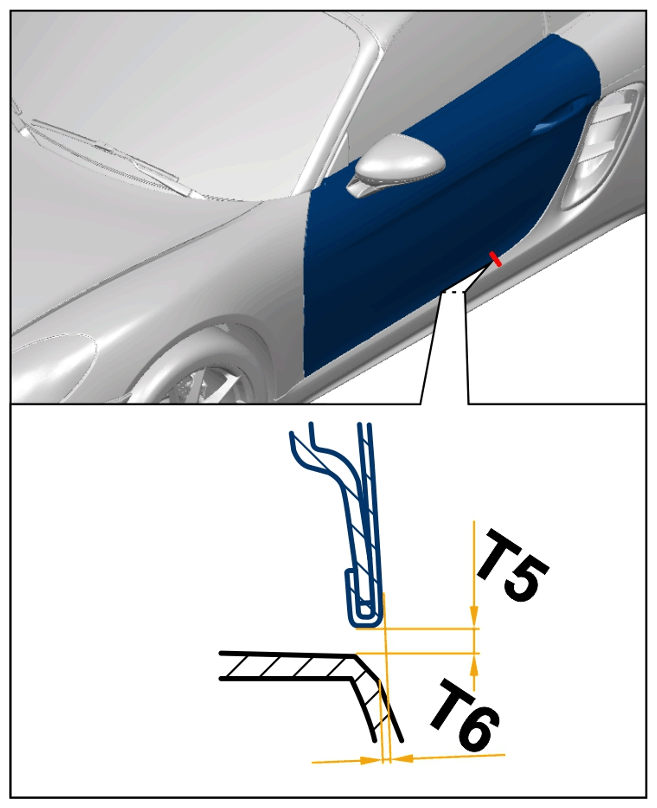

Front door to door entry guard (T5)	Gap dimension	3.5 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door
Front door to door entry guard (T6)	Gap dimension	1 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door

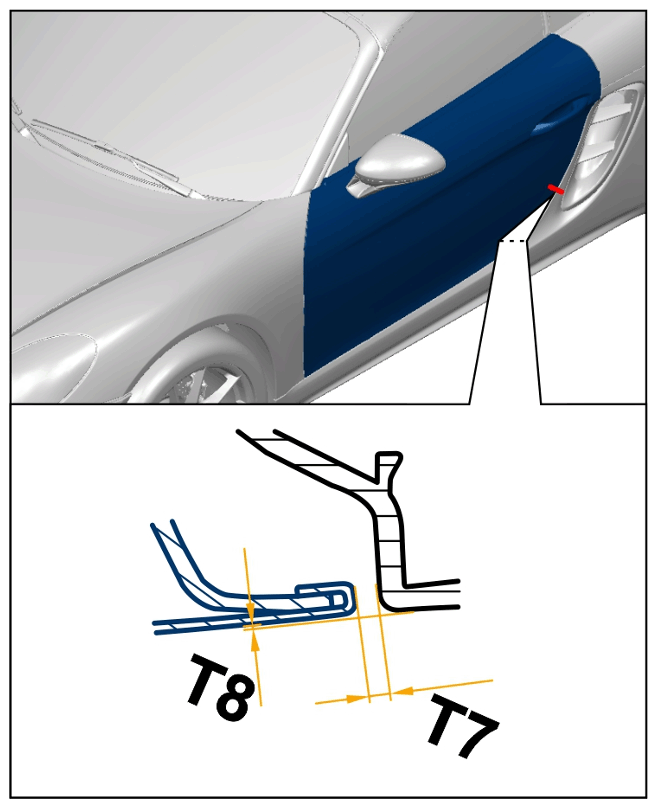

Front door to door entry guard (T7)	Gap dimension	3 mm	0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door
Front door to door entry guard (T8)	Gap dimension	0.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door

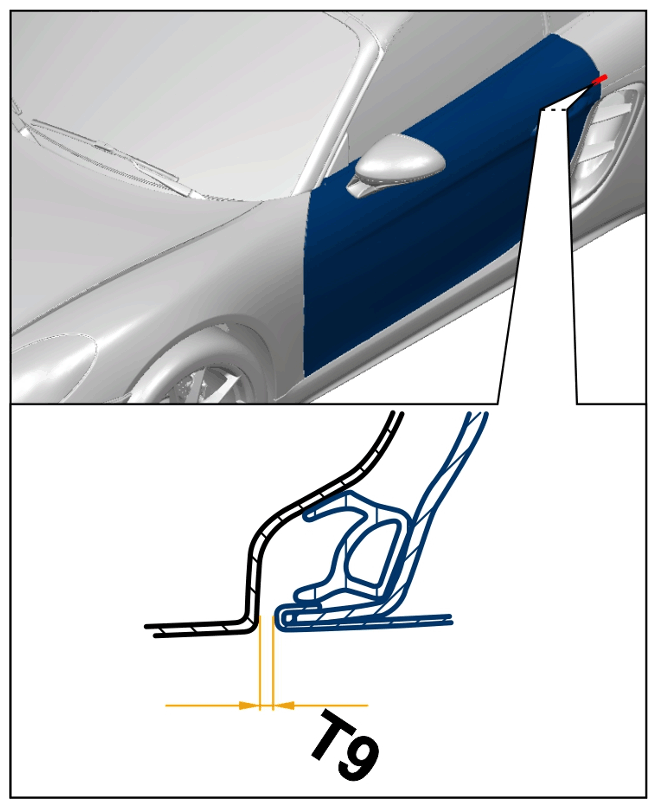

Front door to rear wing (T9)	Gap dimension	3 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door
