Gap Dimensions For Rear Apron
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|

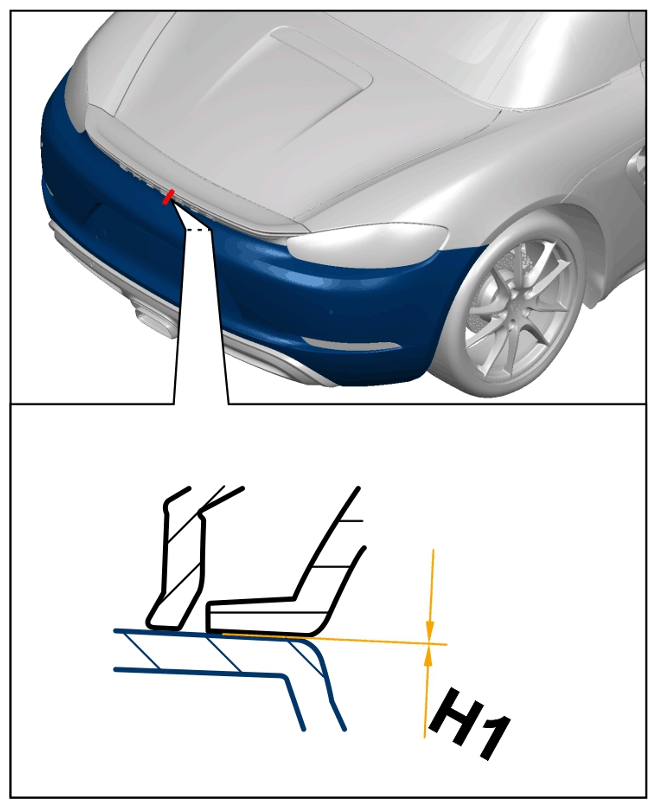

| Rear apron to lopo trim (H1) | Gap dimension | 0 mm | + 0.5 mm | |
|
Gap dimension of rear apron |
||||

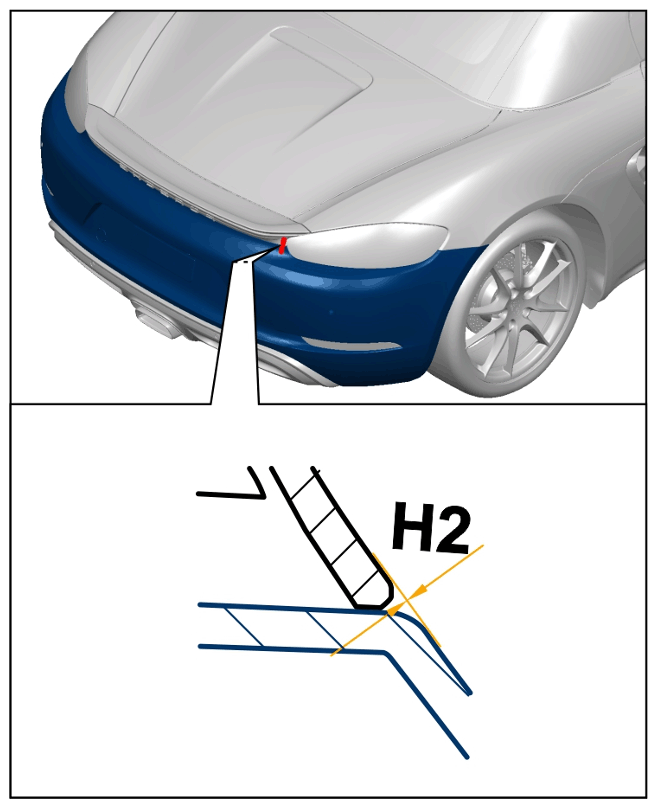

| Rear apron to logo trim (H2) | Gap dimension | 0 mm | -1 mm | |
|
Gap dimension of rear apron |
||||
| Rear apron to tail light (H3) | Gap dimension | 1 mm | +/- 0.5 mm | |
|
Gap dimension of rear apron |
